The Herschel/SPIRE Point Source Catalogue

The Herschel / SPIRE Point Source Catalogue

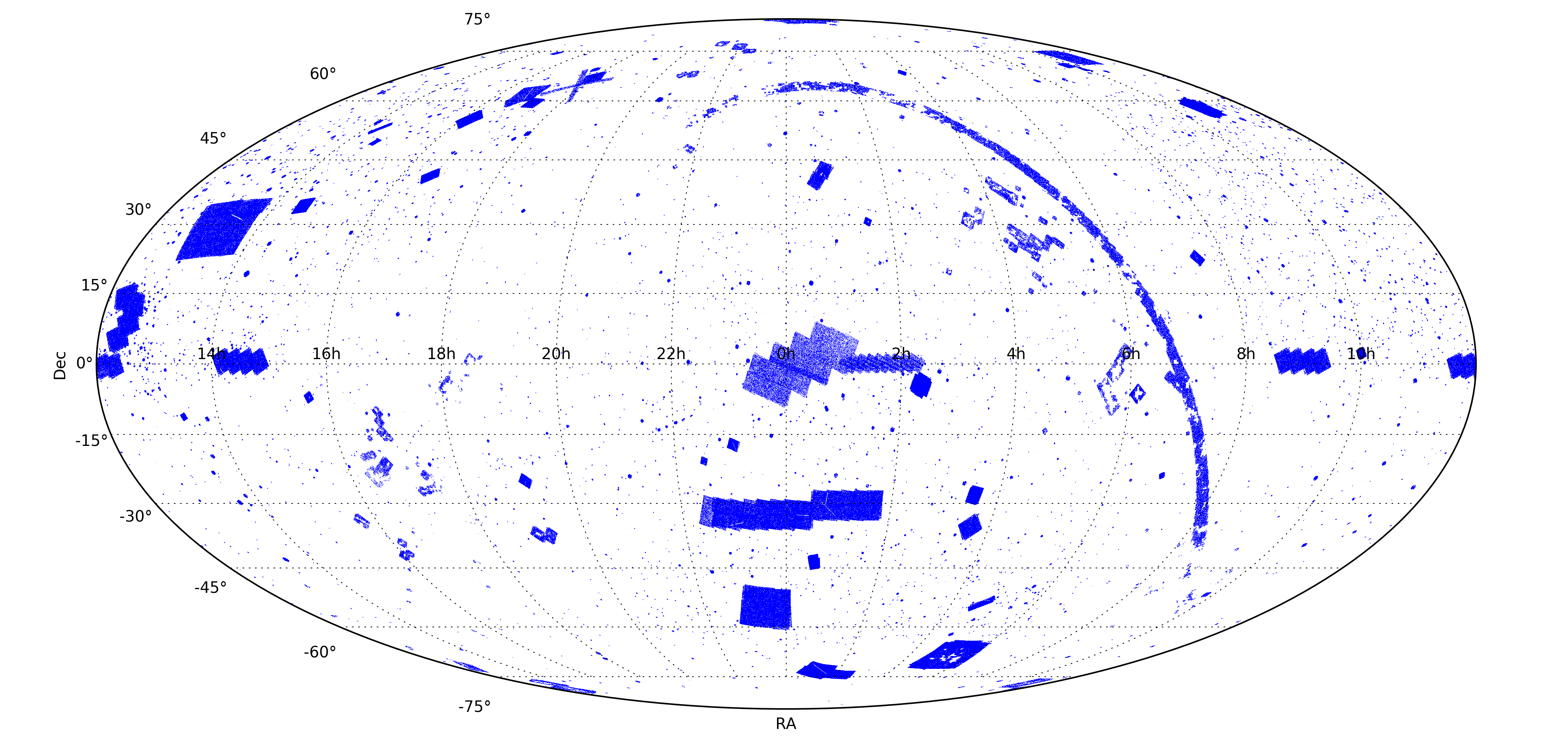

All-sky Aitoff projection of the HSPSC sources included in the Herschel/SPIRE Point Source Catalogue



DOI: https://doi.org/10.5270/esa-6gfkpzh



The first version of the Herschel/SPIRE Point Source Catalogue (HSPSC or SPSC), containing more than 1,6 million entries spread between the three SPIRE bands, has been released on 7 February 2017.

The catalogue consists of three tables, one for each SPIRE photometric band, provided as zipped coma-separated-value format files, that you can download with just one click using the links below:


For your convenience, you can also perform queries around a particular position in the sky using the Catalog Search Tool for Herschel data available from NASA's Infrared Science Archive (IRSA), or the TAP (Table Access Protocol) service provided by the Herschel Science Archive through convenient VO tools like TOPCAT. The Herschel/SPIRE Point Source Catalogue is also available through ESASky.


The SPIRE instrument onboard Herschel mapped about 9% of the sky in sub-millimeter broad-band filters centred at 250, 350 and 500 microns (1199, 857, 600 GHz, respectively) with spatial resolutions of 17.9”, 24.2” and 35.4”, respectively. The SPSC was extracted from a total of 6878 Herschel/SPIRE observations, consisting of a serendipitous mix of programme science observations with sky coverage to various depths and calibration observations performed in standard configurations.

The SPSC photometry was obtained by a systematic and homogeneous source extraction procedure, followed by a rigorous quality check that emphasized reliability over completeness. Regions affected by strong Galactic emission, mostly in the Galactic Plane, were excluded, as they pushed the limits of the four source extraction methods that were used.   Aimed primarily at point sources, the SPSC also contains a significant number of slightly extended sources. Due to the relatively large spatial extent of the SPIRE beams, a number of point or extended sources in the SPSC can actually be composites of multiple sources seen at shorter wavelengths.  Users are encouraged to trace back catalogue entries to the originally contributing detections in SPIRE observations via the cross identification table available for download, which provides links between the individual catalogue entries (SPSCIDs) and the relevant observation identifiers (OBSIDs) in the Herschel Science Archive.

For further details on catalogue construction, detailed content, and validation, please see the SPIRE Point Source Catalogue Explanatory Supplement. Users should pay particular attention to the Cautionary Notes in this document before using the contents of the SPSC for their research.

Citation: European Space Agency, 2017, Herschel SPIRE Point Source Catalogue, Version 1.0. https://doi.org/10.5270/esa-6gfkpzh ; see also the more general 'Herschel Publishing Rules and Guidelines'.

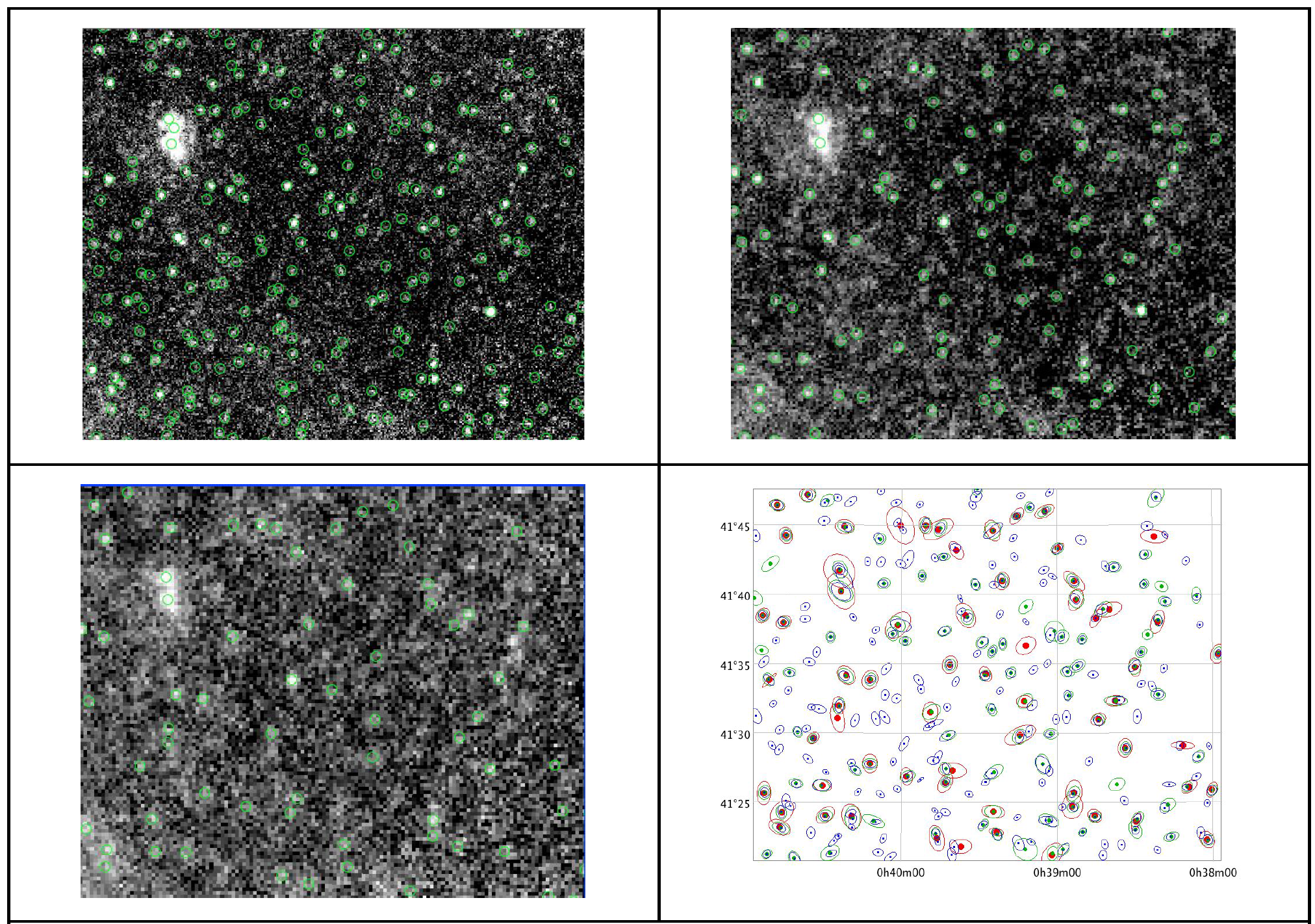

250μm (top left), 350μm (top right), and 500μm (bottom left) maps (ObsID: 1342211319) with overplotted object positions. The plot in the lower right corner shows the ellipses derived from the shape parameters, with different wavelengths represented in blue (250μm), green (350μm) and red (500μm) colours.

250μm (top left), 350μm (top right), and 500μm (bottom left) maps (ObsID: 1342211319) with overplotted object positions. The plot in the lower right corner shows the ellipses derived from the shape parameters, with different wavelengths represented in blue (250μm), green (350μm) and red (500μm) colours. Good positional correspondence of brighter point sources, as well as source multiplicity due to confusion at low flux levels, can be seen.
