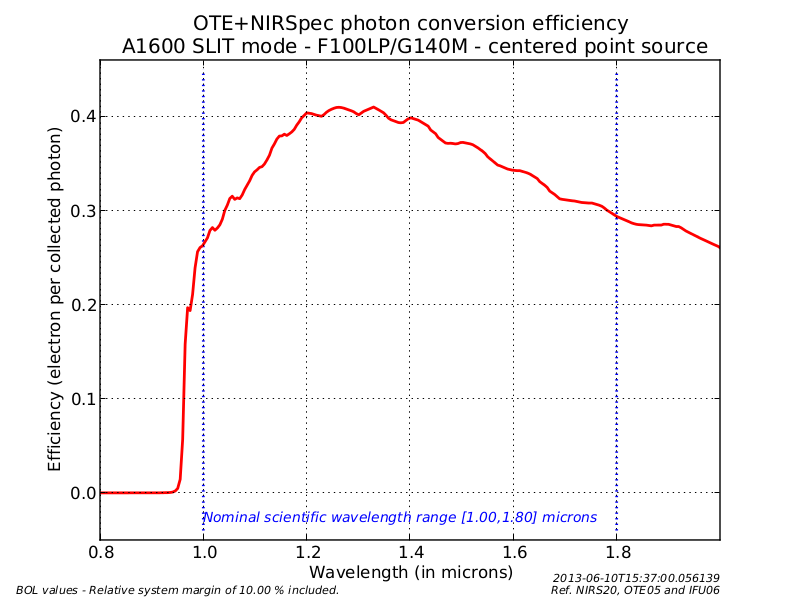

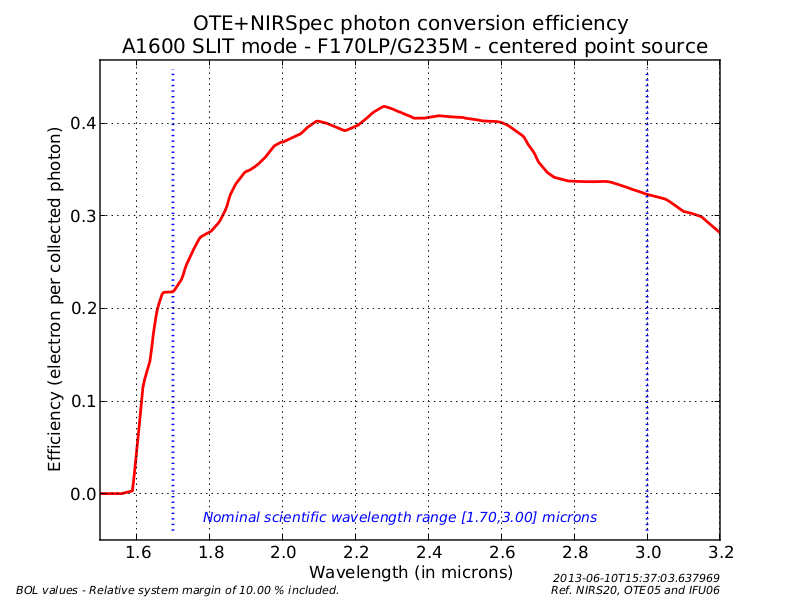

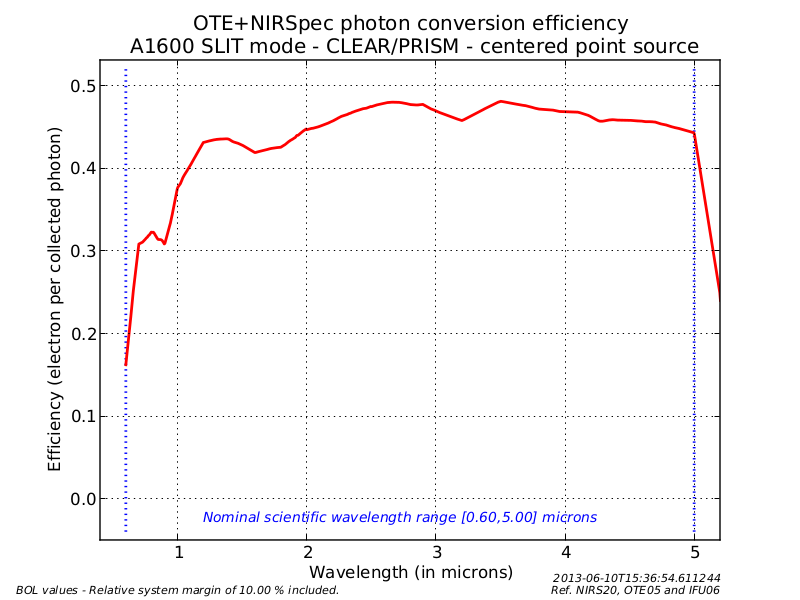

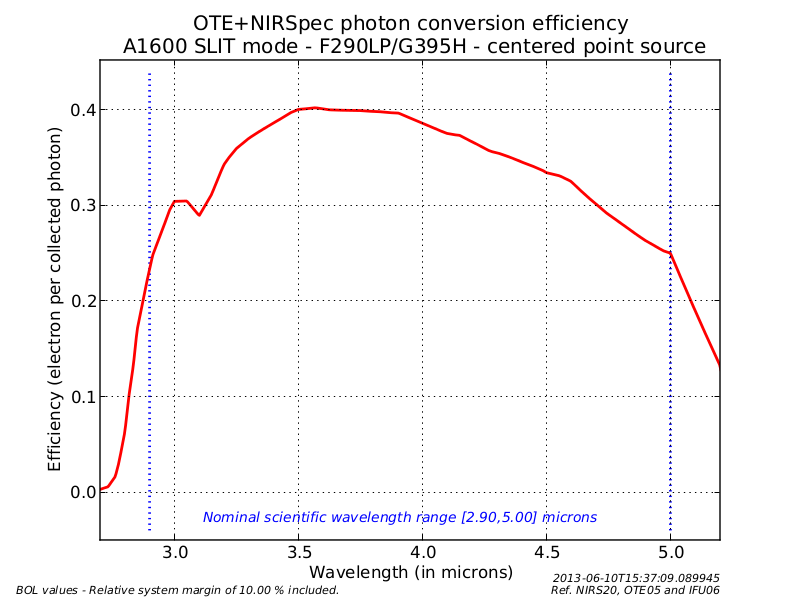

NIRSpec Photon Conversion EfficiencyBelow we show the combined photon conversion efficiency (PCE) curves of NIRSpec and the JWST optical telescope element (OTE) for all dispersers. The curves are for a point source centered in the 1.6" x 1.6" aperture and assuming average detector quantum efficiency (QE). |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
