Global Maps of Mars
This page provides quick access to all global maps of Mars that have been published in the PSA. You can easily visualise each map and download the data in both PDS and GIS formats. It is intended that this page will continue to evolve with future releases of similar high-level mapping products.
The maps currently available are surface albedo and mineralogical maps derived from the reflectance data acquired by the Mars Express OMEGA hyperspectral camera. Together they constitutes a unique atlas that will enable users to study the surface of Mars in a global context. Note that you can also browse and visualise the OMEGA Mars Global Maps data set in Google Earth.
Albedo

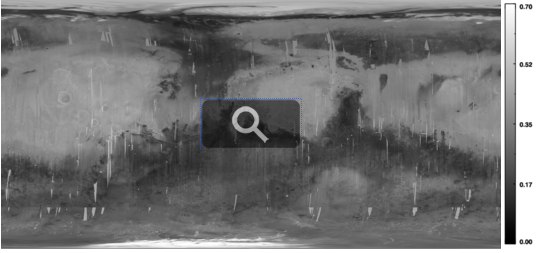

OMEGA NIR Albedo
| Description |
This data product is a global NIR 1-micrometer albedo map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
Mafic Minerals
OMEGA Pyroxene
| Description |
This data product is a global pyroxene spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This pyroxene spectral parameter (BD2000) is based on its 2 micrometer absorption band due to both high-calcium and low-calcium pyroxene.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
OMEGA Olivine SP1
| Description |
This data product is a global olivine spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This olivine spectral parameter (OSP1) detects Mg-rich and/or small grain size and/or low abundance olivine.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
OMEGA Olivine SP2
| Description |
This data product is a global olivine spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This olivine spectral parameter (OSP2) is sensitive to olivine with high iron content and/or large grain size and/or high abundance.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
OMEGA Olivine SP3
| Description |
This data product is a global olivine spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This olivine spectral parameter (OSP3) determines the full band depth at 1.36 micrometer relative to a continuum. It preferentially detects olivine with a large Fe content and/or with large grain size and/or with high abundance.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
Ferric Oxides and Dust
OMEGA Fe3+
| Description |
This data product is a global ferric oxide spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This ferric oxide spectral parameter (DB530) is based on the strength of the 0.53 micrometer ferric absorption edge.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
OMEGA Ferric Nanophase
| Description |
This data product is a global nanophase ferric oxide (dust) spectral parameter map of Mars based on reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to August 2010. This nanophase ferric oxide spectral parameter (NNPHS) is based on the absorption feature centered at 0.86 micrometer.
|
| Resolution | 44 pixels/degree (ppd) (1.48 km/pixel) |
| Size | 14400 x 7200 pixels |
| Projection | Simple cylindrical, -180E to 180E, 90N to -90N, planetocentric |
| Citation | Ody, A., et al., Global maps of anhydrous minerals at the surface of Mars from OMEGA/MEx, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004117, 2012 |
| Download | PDS Label | PDS Image | ISIS Cube | GeoTIFF |
Hydrous Minerals

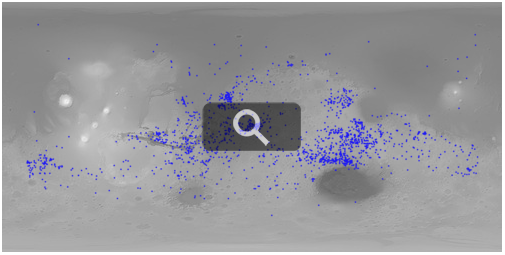

OMEGA/CRISM Hydrous Sites
| Description |
This data product is a global map of hydrated mineral sites at the surface of Mars detected using the reflectance data acquired by the Mars Express OMEGA hyperspectral camera from January 2004 to September 2010, and from the Mars Reconnaissance Orbiter (MRO) CRISM imaging spectrometer.
|
| Resolution | N/A |
| Size | N/A |
| Projection | Planetocentric coordinates |
| Citation | Carter, J., et al., Hydrous minerals on Mars as seen by the CRISM and OMEGA imaging spectrometers: Updated global view, J. Geophys. Res. Planets, 118, doi:10.1029/2012JE004145, 2013 |
| Download | PDS Label | PDS Spreadsheet | Shapefile |
