    General advice

    As a general rule, please select the L2 processing level (best calibrated) version, available for all experiments but STIX (as of July 1, 2024). This will avoid the results containing other (uncalibrated) versions of the files. Note that a few instruments have higher-level L3 (derived) products (e.g., EUI JPEG 2000 images). One sub-instrument, SWA Heavy Ion Sensor (HIS), recommends to use its L3 data products as their best calibrated product.

    Search by telescope or sensor

    The SOAR web search interface (https://soar.esac.esa.int/soar/#search) enables the selection of multiple Solar Orbiter instruments with a dropdown box. However, there is not yet a capability to directly select a particular telescope (e.g. the Full Sun Imager -FSI- or the High Resolution Imager -HRI- for the EUI instrument) or sensor (e.g. PAS, EAS or HIS for SWA).

    To search for a particular sensor, please use the "File Name" field of the search interface. This has to be done one by one, but is case-insensitive and can involve strings with multiple (*) or single (?) character wildcards, e.g., 'epd-*-rates'.



    Instrument

    Telescope/detector

    File Name field

    Extreme UV Imager (EUI)

    Full Sun Imager (FSI) 174 Å
    Full Sun Imager (FSI) 304 Å
    High Resolution Imager (HRI)  174  Å
    High Resolution Imager (HRI) 1216 Å

    fsi174
    fsi304
    hrieuv174
    hrilya1216

    Metis: Visible light and ultraviolet coronagraph (Metis)

    Visible (580-640 nm)
    UV 1216 Å

    metis-vl
    metis-uv

    Polarimetric and Helioseismic Imager (PHI)

    Full Disk Telescope (FDT)
    High Resolution Telescope (HRT)

    phi-fdt
    phi-hrt

    SPectral Investigation of the Coronal Environment (SPICE)

    Narrow slits (2"/4"/6")
    Wide slit (30")

    spice-n
    spice-w

    Energetic Particle Detector (EPD)

    Electron Proton Telescope (EPT)
    SupraThermal Electrons and Protons (STEP)
    Suprathermal Ion Spectrograph (SIS)
    High-Energy Telescope (HET)
    Combined EPT/HET data products

    epd-ept-
    epd-step
    epd-sis
    epd-het
    epd-epthet

    Radio and Plasma Wave instrument (RPW)

    Low Frequency Receiver (LFR)
    Time Domain Sampler (TDS)
    Thermal Noise Receiver (TNR)
    High Frequency receiver (HFR)
    BIAS (inc. DC E-field, density, S/C potential)

    rpw-lfr
    rpw-tds
    rpw-tnr
    rpw-hfr
    rpw-bia

    Solar Wind Analyser (SWA)

    Electron Analyser System (EAS)
    Heavy Ion Sensor (HIS)
    Proton and Alpha particle Sensor (PAS)

    swa-eas
    swa-his
    swa-pas

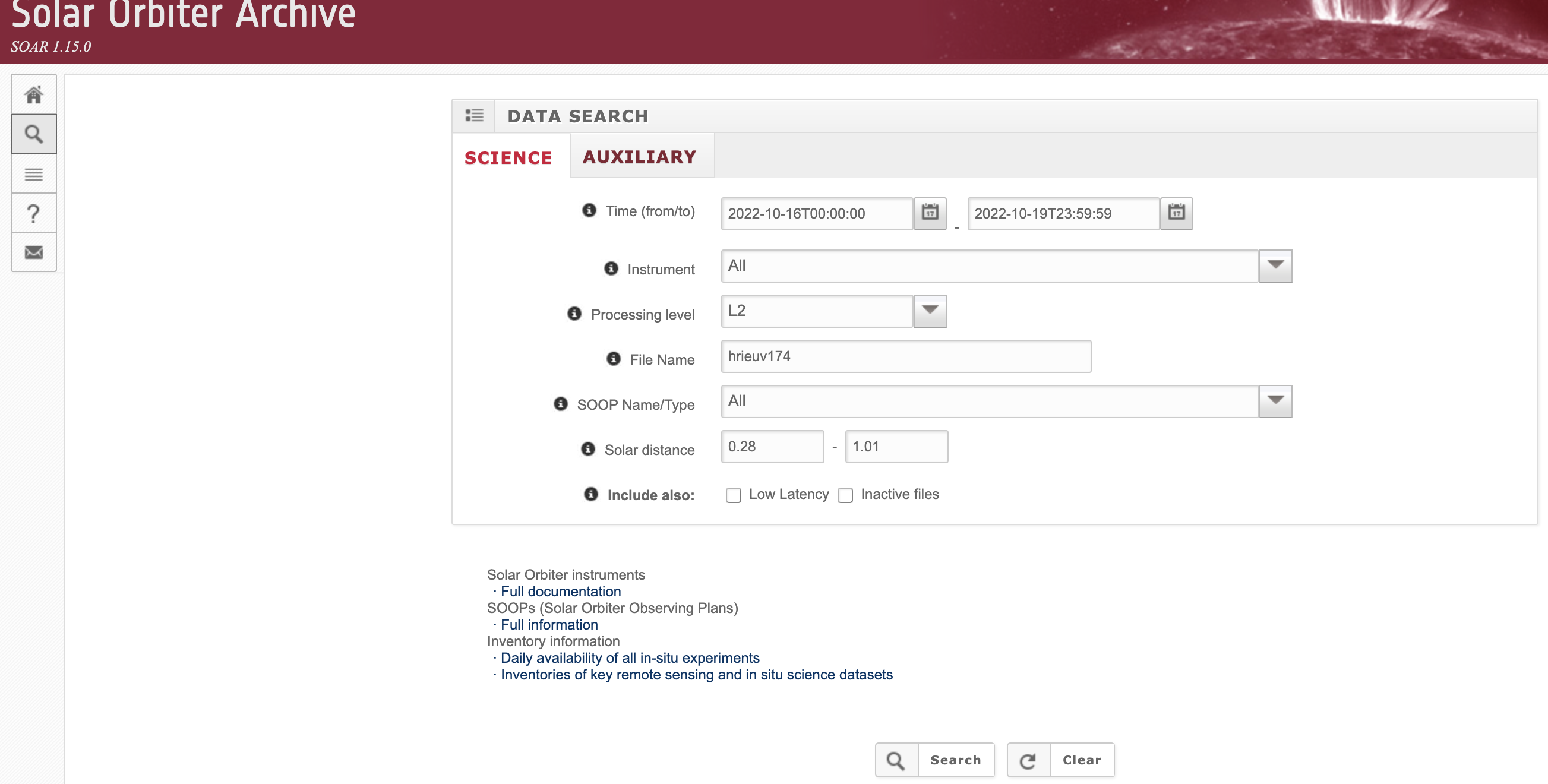

    For instance, for the EUI High-Resolution Imager (EUI/HRI) at 174 Å, please use the single string listed in the above table (hrieuv174) in the search interface

    ​

    Different telescopes/sensors will be selectable in one go in the upcoming re-designed version of SOAR.

    Go back up

    Search by cadence and/or reference frame

    A number of experiments propose different cadence for their measurements (e.g. MAG, EPD, STIX). Some scientific investigations require the highest cadence to perform certain data analyses, while others require a better data coverage. To select only these files, the Filename field can also be used to filter the descriptors of the filenames. Here are a few examples for EPD and MAG of single strings to input the "File Name" field (similar to the snapshot above).


    EPD

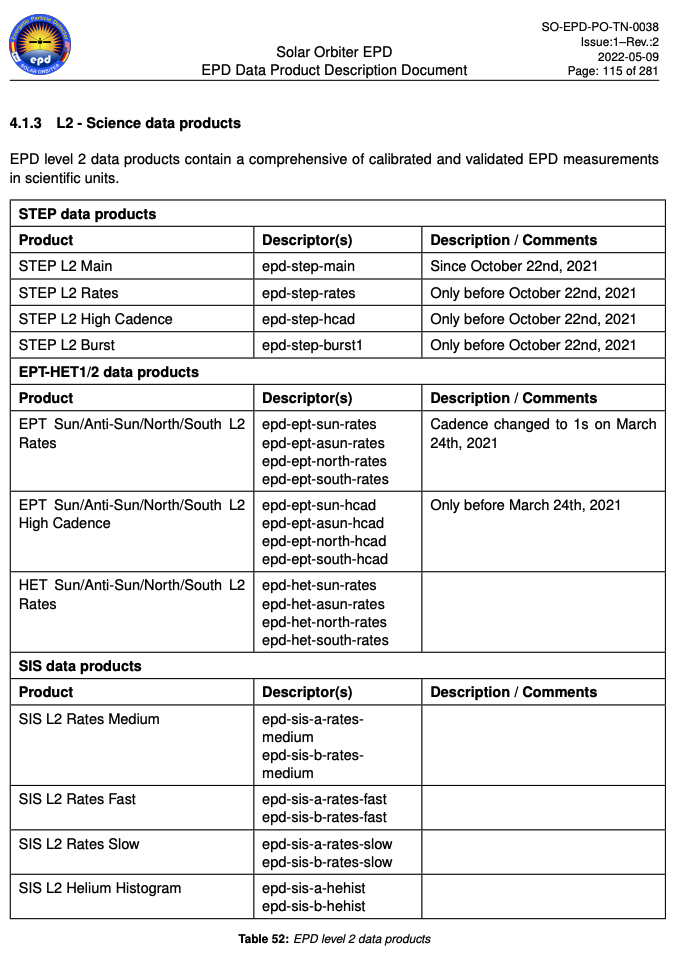

    This description below is directly extracted from the EPD user guide (p.114). Just use the descriptor column to access a specific product

    MAG

    DC Magnetic field (MAG)
    Cadence

    Product


    String to use in the "File Name" field


    Burst mode

    MAG products in burst mode (highest time resolution), all reference frames
    MAG products in burst mode and Radial-Transverse-Normal (RTN) reference frame
    MAG products in burst mode and Spacecraft Reference Frame (SRF)
    MAG products in burst mode and Venus centric Solar Orbital frame (VSO)

    mag*burst
    mag*rtn*burst
    mag*srf*burst
    mag*vso*burst

    Normal mode

    MAG products in normal mode, all reference frames
    MAG products in normal mode and RTN reference frame
    MAG products in normal mode and SRF
    MAG products in normal mode and VSO frame

    mag*normal
    mag*rtn*normal
    mag*srf*normal
    mag*vso*normal

    1 minute resolution

    MAG products at 1 minute resolution, all reference frames
    MAG products at 1 minute resolution in RTN reference frame
    MAG products at 1 minute resolution in SRF
    MAG products at 1 minute resolution VSO frame

    mag*normal-1-minute
    mag*rtn*normal-1-minute
    mag*srf*normal-1-minute
    mag*vso*normal-1-minute



    A list of all descriptors for any experiment, either Level 1 and Level 2 are listed in the detailed inventory plots. All descriptors are described in the experiments' user manuals (DPDD = Data Product Description Document).

    Go back up

    Product with specific unit

    A number of experiments provide data in specific units. Again, the "File Name" field in the search form of SOAR can be used to access one specific product for



    SWA

    Solar Wind Analyser (SWA) sensor

    Product

    String to use in the "File Name" field

    Proton Alpha Sensor (PAS)

    3D ion velocity distribution function (up to 11 azimuth, 9 elevations, 96 energies)
    1D ion Differential Energy flux (3D integrated over elevations and azimuths)
    Moments (calibrated on the ground)

    swa-pas-vdf
    swa-pas-eflux
    swa-pas-grnd-mom

    Heavy ion sensor (HIS)
    (L3 product advised)

    Heavy ions at 10 minutes time resolution (up to 75 ions in a single scan)

    L3_swa-his-comp-10min

    Electron Analyser Sensor (EAS)

    Electron pitch angle data in Differential Number Flux (DNF)
    Electron pitch angle data in Differential Energy Flux (DEF)
    Electron pitch angle data in Phase Space Density (PSD)
    -----------------------------------------------------------------
    Electron 3D distribution function for EAS 1 sensor in DNF
    Electron 3D distribution function for EAS 1 sensor in DEF
    Electron 3D distribution function for EAS 1 sensor in PSD
    -----------------------------------------------------------------
    Electron single strahl distribution for EAS 1 sensor in DNF
    Electron single strahl distribution for EAS 1 sensor in DEF
    Electron single strahl distribution for EAS 1 sensor in PSD
    ------------------------------------------------------------------
    Electron 3D distribution function for EAS 2 sensor in DNF
    Electron 3D distribution function for EAS 2 sensor in DEF
    Electron 3D distribution function for EAS 2 sensor in PSD
    -----------------------------------------------------------------
    Electron single strahl distribution for EAS 2 sensor in DNF
    Electron single strahl distribution for EAS 2 sensor in DEF
    Electron single strahl distribution for EAS 2 sensor in PSD

    swa-eas-pad-dnf
    swa-eas-pad-def
    swa-eas-pad-psd
    ----------------------
    swa-eas1-nm3d-dnf
    swa-eas1-nm3d-def
    swa-eas1-nm3d-psd
    ----------------------
    swa-eas1-ss-dnf
    swa-eas1-ss-def
    swa-eas1-ss-psd
    -----------------------
    swa-eas2-nm3d-dnf
    swa-eas2-nm3d-def
    swa-eas2-nm3d-psd
    -----------------------
    swa-eas2-ss-dnf
    swa-eas2-ss-def
    swa-eas2-ss-psd



    Go back up

    Solar Distance

    The SOAR graphical interface allows you to search by solar distance. Simply input a range of distances, between 0.29 AU and 1.02 AU, where you would like to restrict your search. This will result in a list of files corresponding to measurements performed by Solar Orbiter within that range. Be aware that this may result in one or more time periods when Solar Orbiter was flying through that distance range. As of July 1, 2024, the list of time ranges deduced by SOAR is not yet provided as a separate files but it is foreseen in the near future.

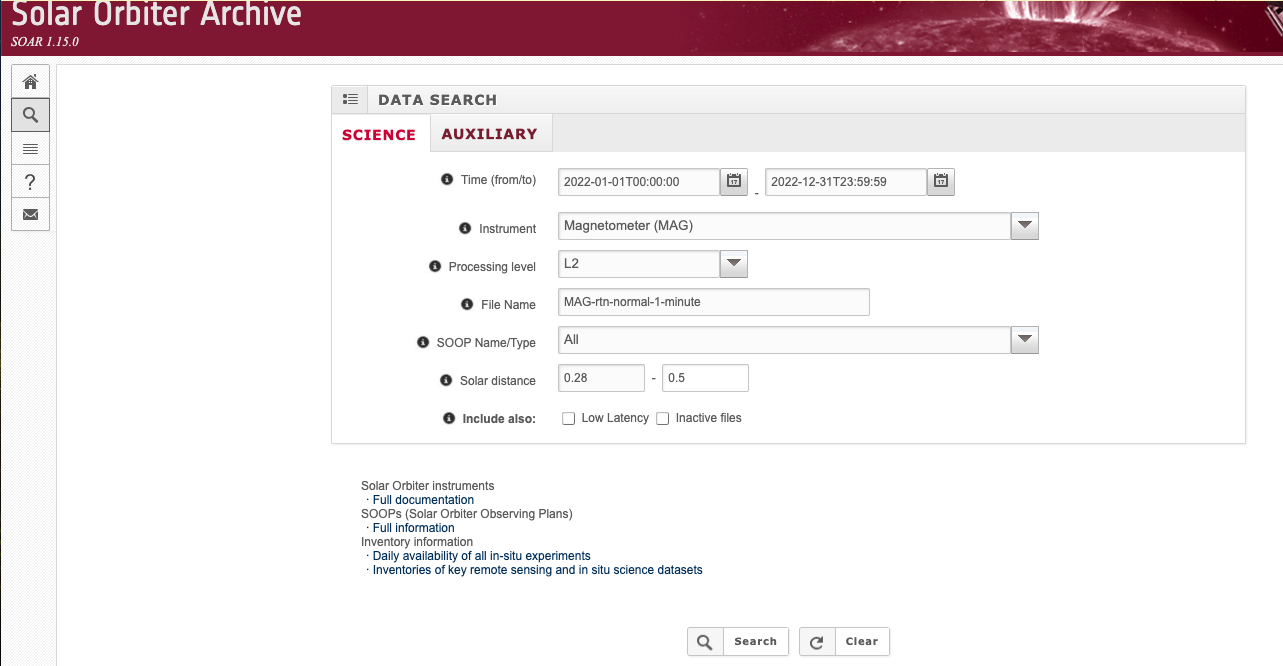

    For instance, there are two time periods in 2022 when Solar Orbiter was closer than 0.5 AU from the Sun and where MAG was operated:
    March 8 to April 16 and 23 September to end-October. Performing this search will extract daily files from MAG measurements during these two time periods in one go.

    This capability can also be used using the programmatic access using the Table Access Protocol. For instance,

    to download all MAG 1 minute resolution files measured in 2022 up to 0.50 AU, i.e. 78 days spread over  08-Mar-2022 to 13-Apr-2022 and 24-Sep-2022 to 30-Oct-2022


    https://soar.esac.esa.int/soar-sl-tap/data?retrieval_type=PRODUCT&QUERY=SELECT+filepath,filename+FROM+soar.v_sc_data_item+WHERE+instrument='MAG'+AND+data_item_id+LIKE+'%25%25mag-rtn-normal-1-minute%25%25'+AND+level='L2'+AND+(begin_time>='2022-01-01T00:00:00')+AND+(end_time<='2023-01-01T00:00:00')&DISTANCE(0.28,0.50)





    Go back up

    Solar Orbiter Observing Plans (SOOPs)

    A detailed page about searching files related to SOOPs in SOAR is available here.

    Full information on the SOOPs operated by Solar Orbiter is available here.
