XMM-Newton EPIC-MOS observations affected by Solar Wind Charge Exchange occurring in the exosphere of the Earth

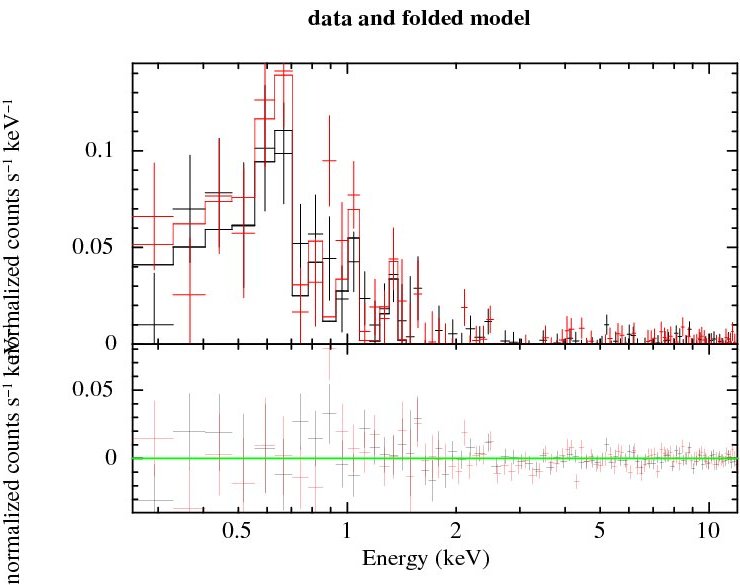

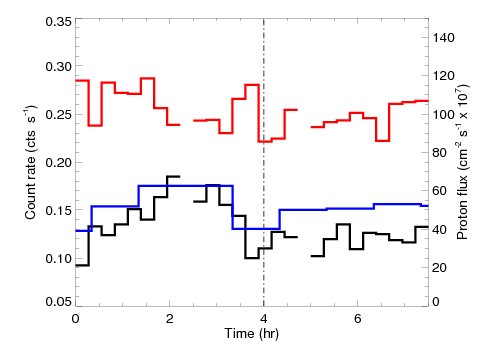

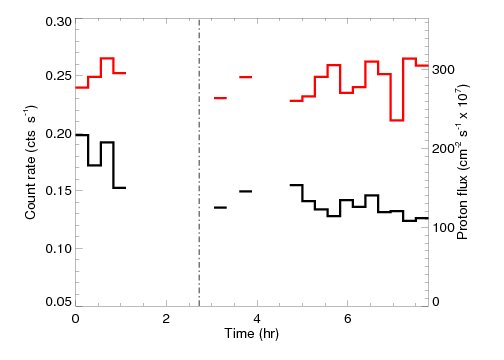

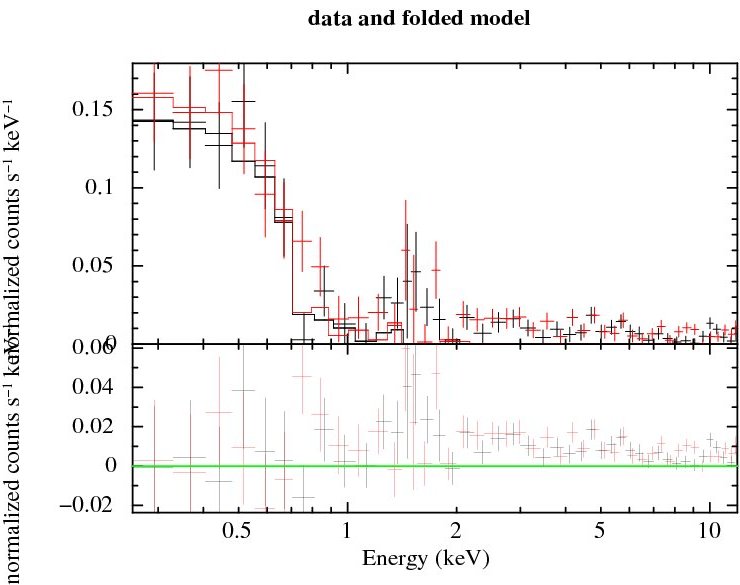

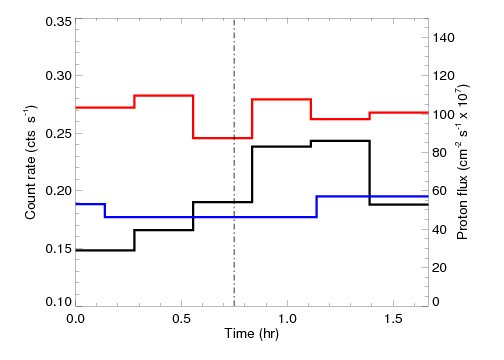

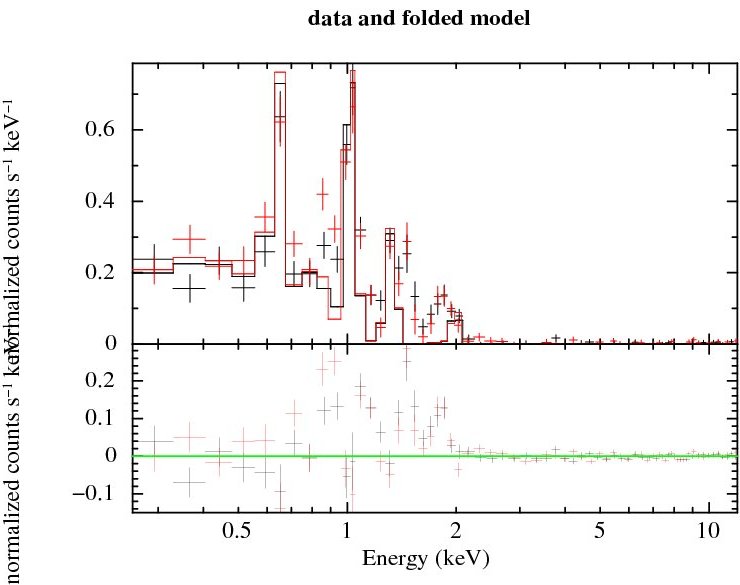

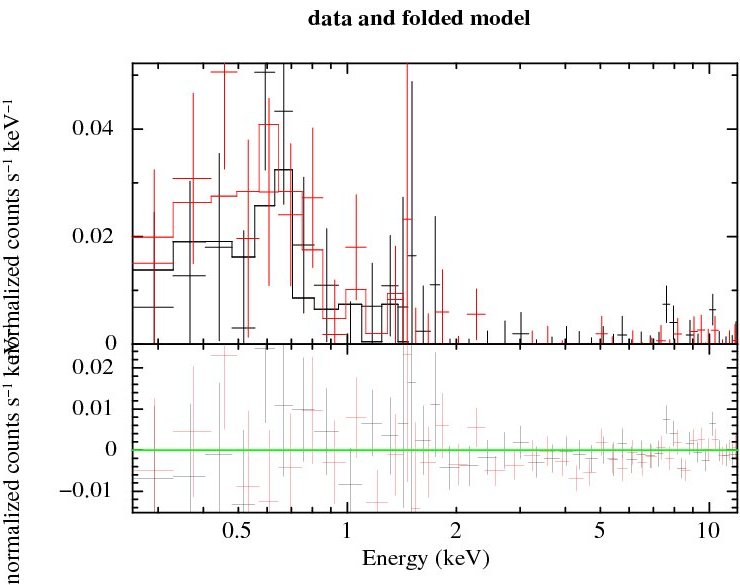

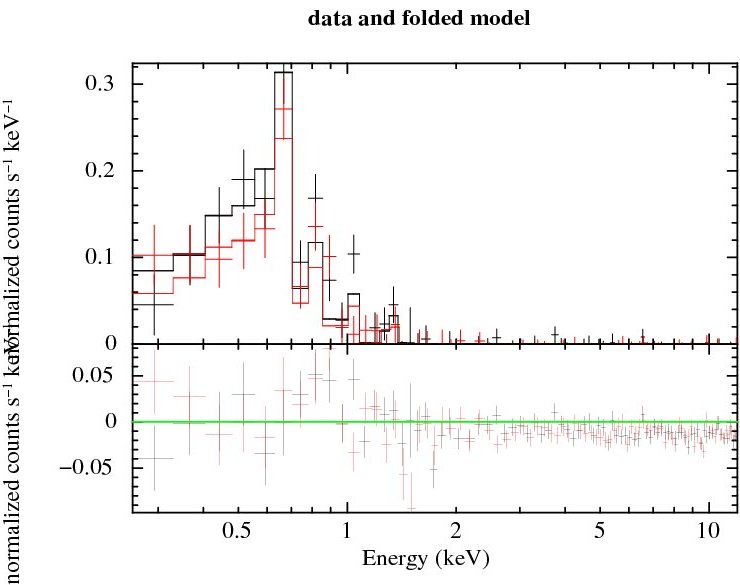

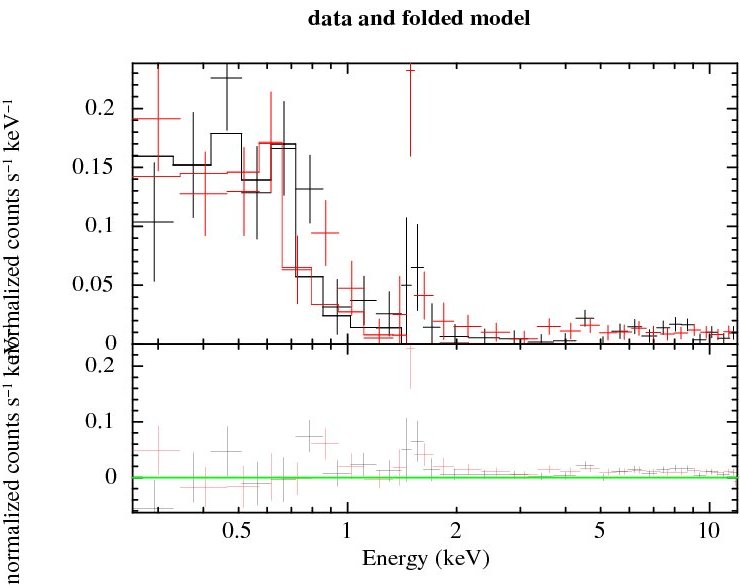

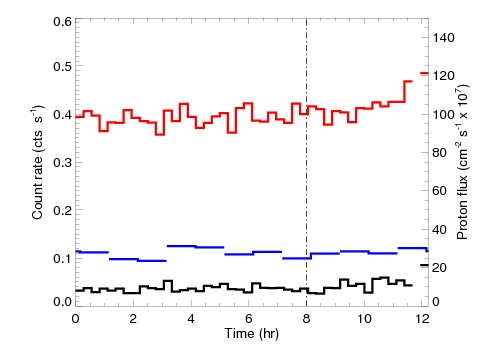

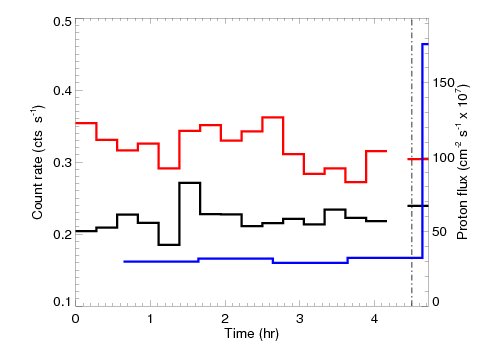

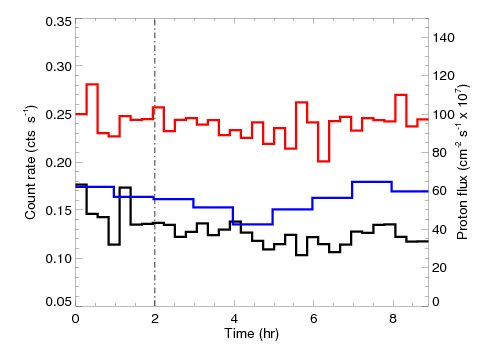

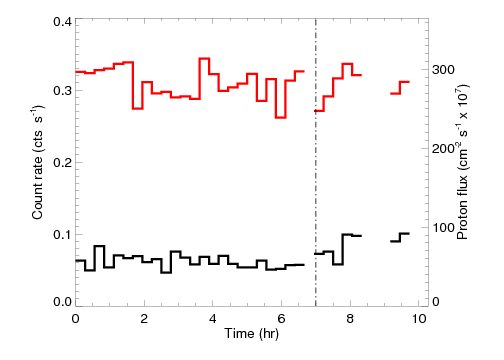

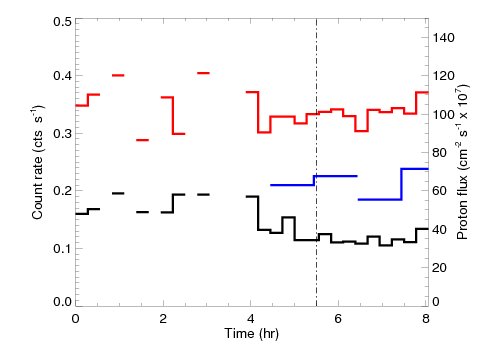

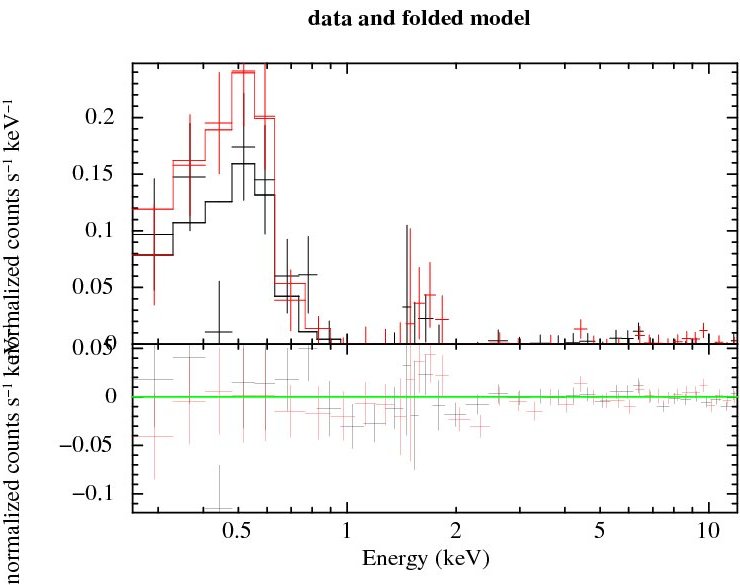

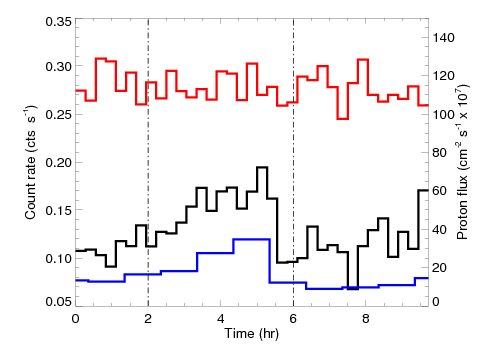

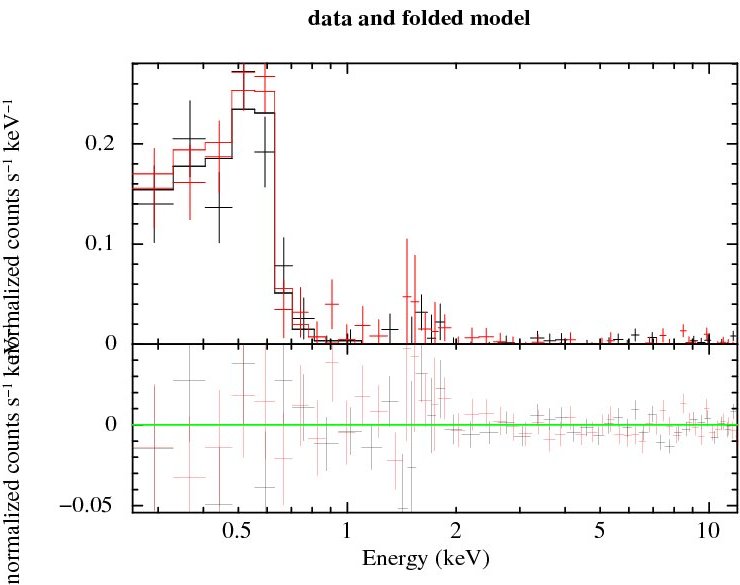

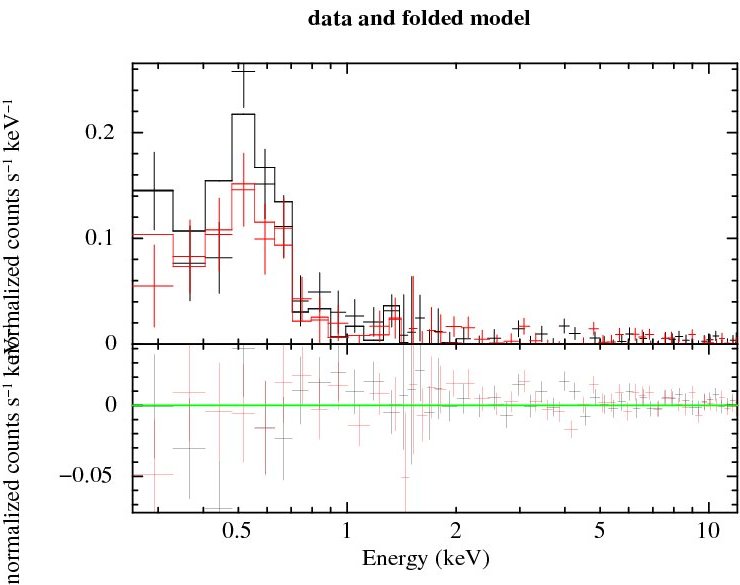

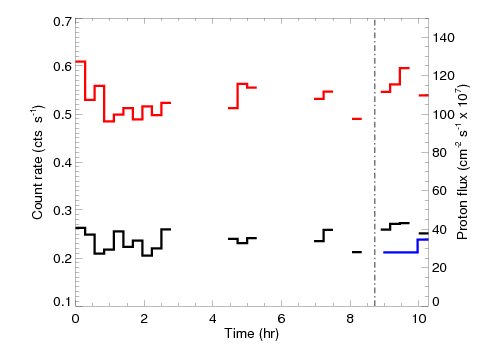

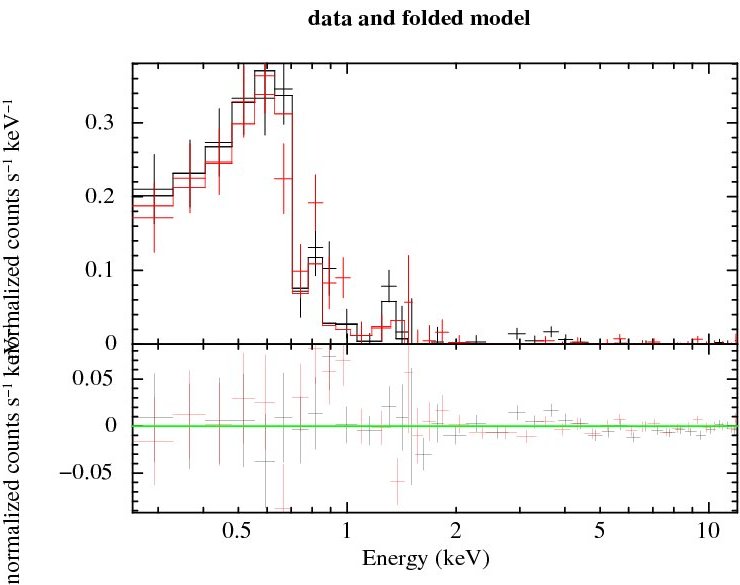

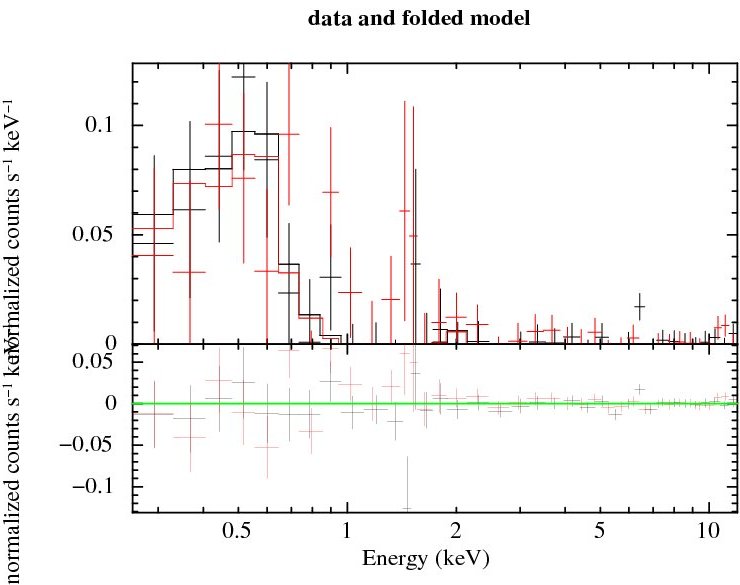

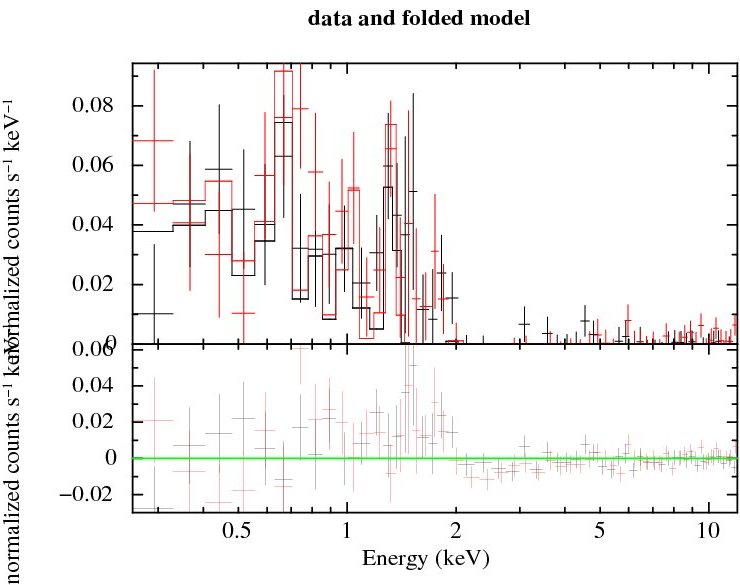

This table details the set of EPIC-MOS observations affected by exospheric Solar Wind Charge Exchange (SWCX, Carter et al. 2011). We quote the EPIC MOS1 and MOS2 exposure identifier for each case. The column "Diagnostic plots" contains links to two types of plots. The first shows low energy (0.5 - 0.7 keV, black) and high energy (2.5 - 5.0 keV, red) lightcurves for the observation in question, with the solar proton flux as measured by ACE (blue) when available. The vertical dot-dashed line separate the SWCX-affected and SWCX-unaffected periods (as described in the paper). The SWCX-affected period occurs when an enhancement is seen in the low-energy lightcurve that is not observed in the high-energy lightcurve. The second plot shows a resultant spectrum for the SWCX-affected period, with a basic SWCX model fit to the data (solid line), using the SWCX-unaffected period as the background in each case. This spectrum is of the SWCX component only (see paper). If your analysis involves data taken by the EPIC-pn during one of the observations listed below, please check carefully whether your observation overlaps with the EPIC-MOS exposures. A list of all 3012 observations analysed in this study, detailing the exposure identifiers and filters used in the exposures, can be found here.


Index Revn. Obsn. Date Expn MOS1 Expn MOS2 Xu Rx Diagnostic plots

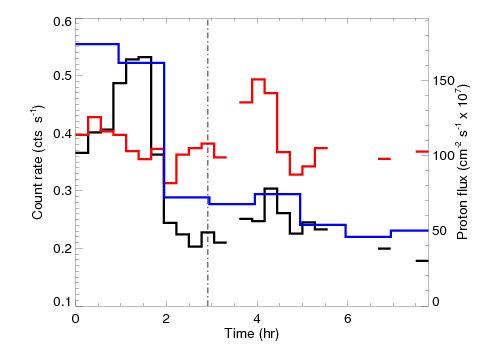

1 0342 0085150301 2001-10-21T21:20:41 U003 U003 27.2 10.3 lightcurve & spectrum

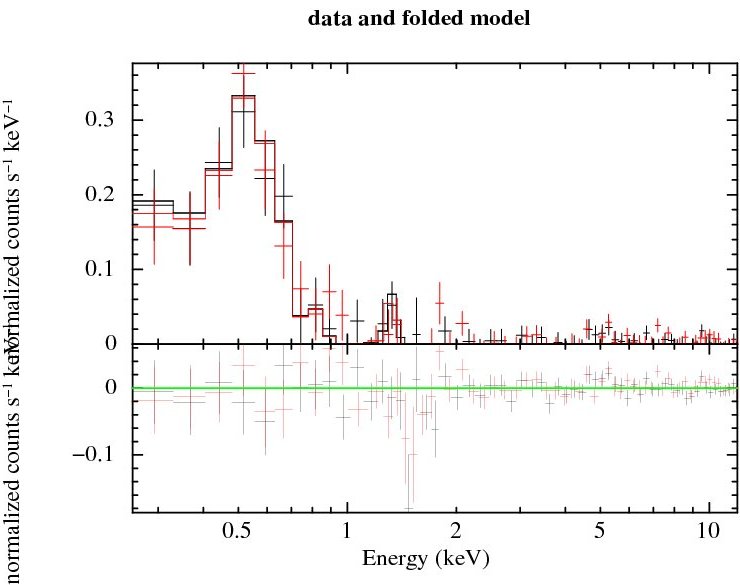

2 0209 0093552701 2001-01-28T15:09:09 S001 S002 23.0 4.0 lightcurve & spectrum
3 1014 0305920601 2005-06-23T07:32:57 S001 S002 15.0 30.9 lightcurve & spectrum

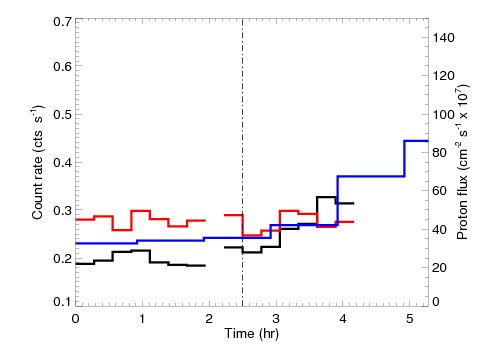

4 0690 0149630301 2003-09-16T09:57:29 S001 S002 14.1 21.6 lightcurve & spectrum

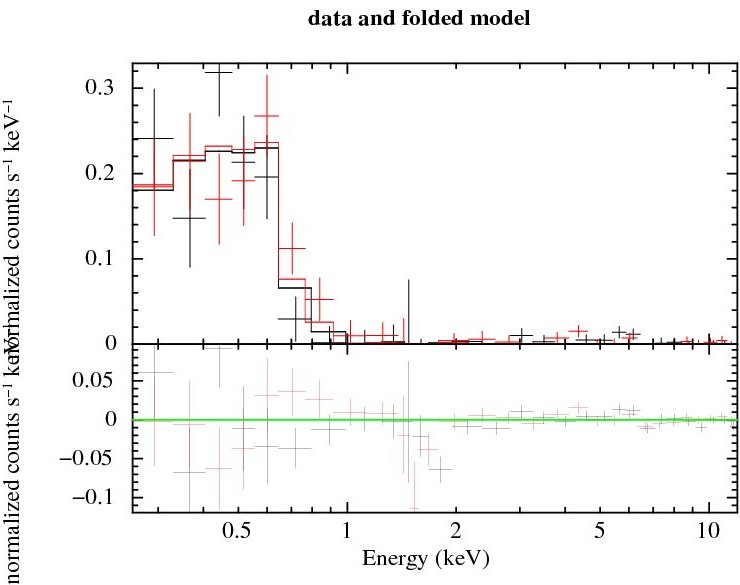

5 0623 0150610101 2003-05-04T14:27:34 U002 U002 13.5 4.8 lightcurve & spectrum

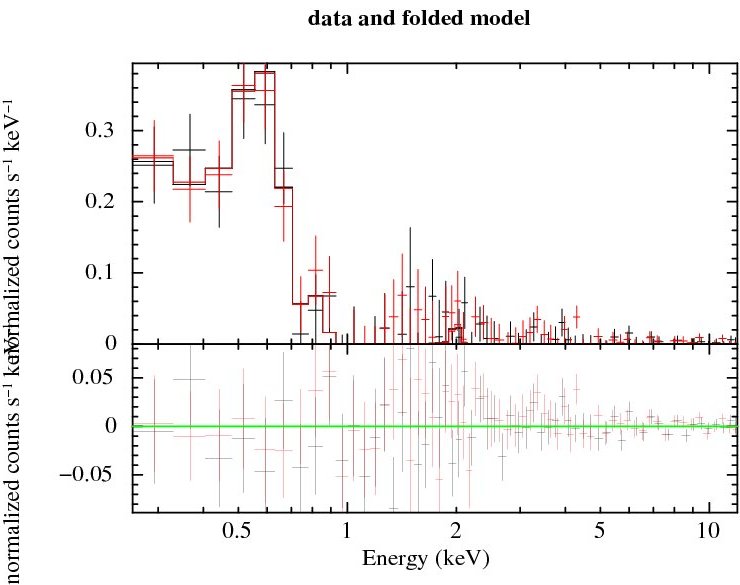

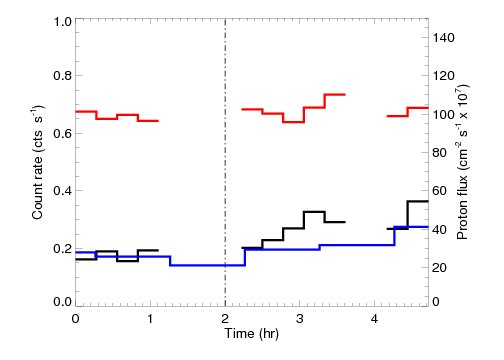

6 0339 0054540501 2001-10-16T04:44:32 S002 S003 13.2 22.4 lightcurve & spectrum

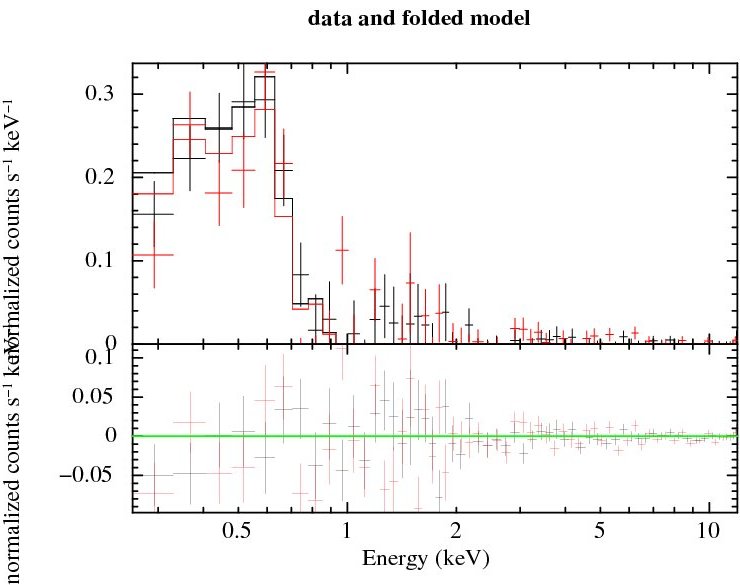

7 0422 0113050401 2002-03-29T22:56:05 S001 S002 12.7 12.3 lightcurve & spectrum

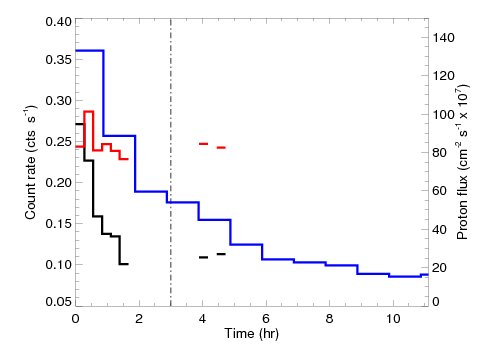

8 0151 0094800201 2000-10-05T16:53:43 S001 S002 12.6 7.2 lightcurve & spectrum

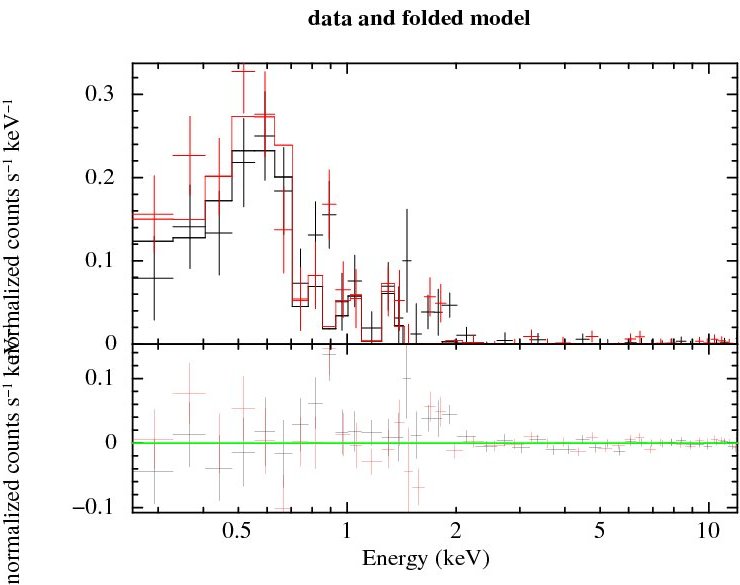

9 0657 0141980201 2003-07-11T10:49:25 S001 S002 12.0 8.1 lightcurve & spectrum

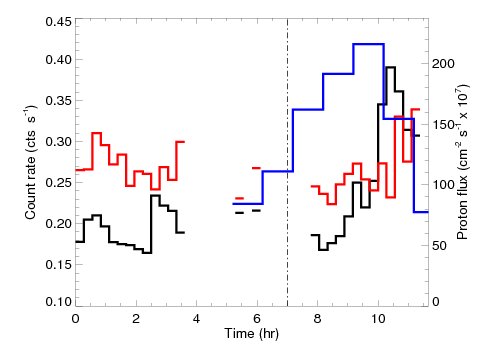

10 0664 0150680101 2003-07-26T08:42:20 S001 S002 9.8 5.3 lightcurve & spectrum

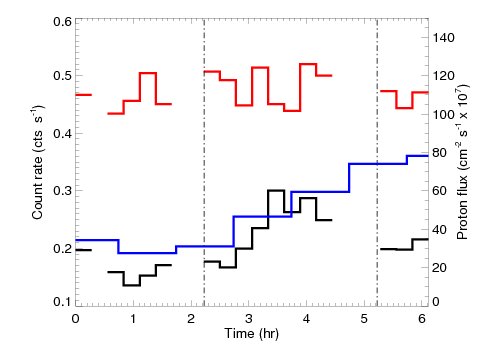

11 0505 0153752201 2002-09-11T04:47:43 S002 S003 8.5 6.5 lightcurve & spectrum

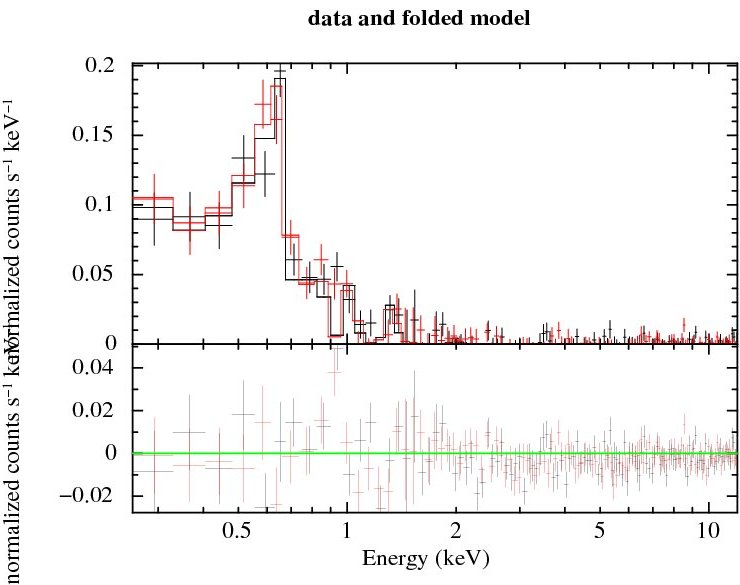

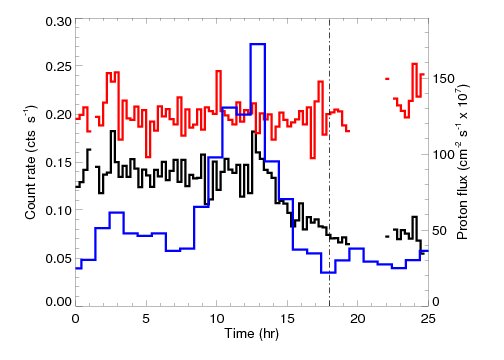

12 0271 0111550401 2001-06-01T08:24:12 S002 S005 7.8 6.9 lightcurve & spectrum

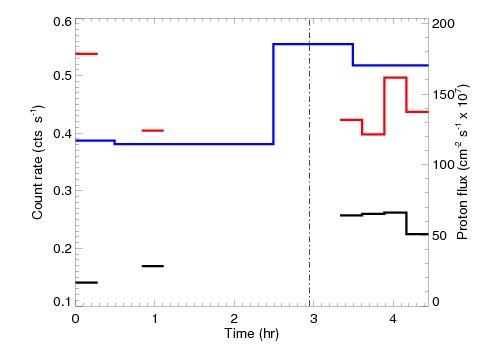

13 0279 0070340501 2001-06-18T08:43:14 S001 S002 7.8 2.3 lightcurve & spectrum

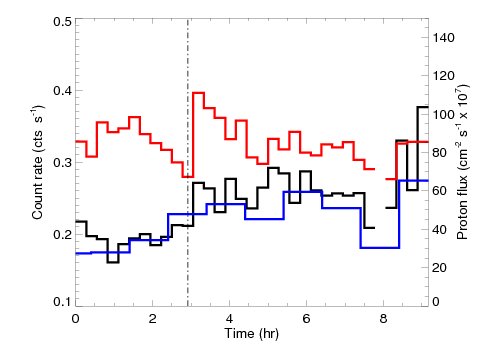

14 0178 0101040301 2000-11-28T18:24:13 S001 S002 7.2 5.2 lightcurve & spectrum

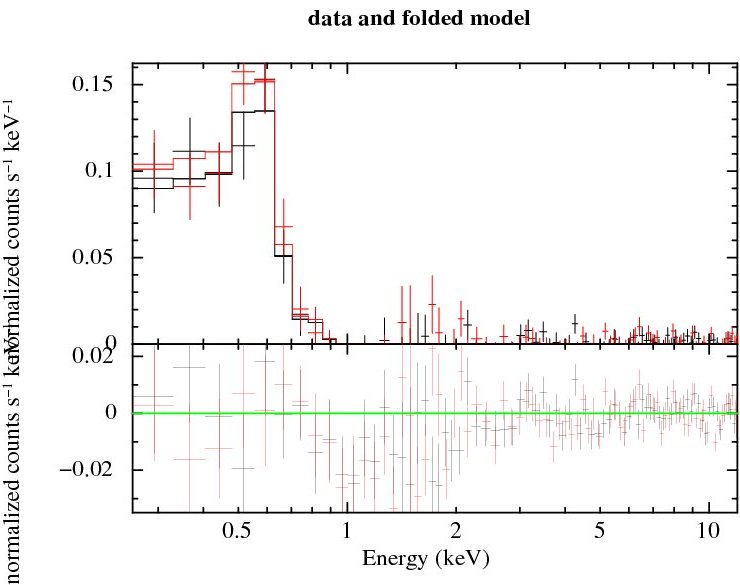

15 0139 0109060101 2000-09-11T20:30:55 S002 S003 7.0 6.1 lightcurve & spectrum
16 0529 0147540101 2002-10-29T19:29:14 S001 S002 6.9 7.1 lightcurve & spectrum

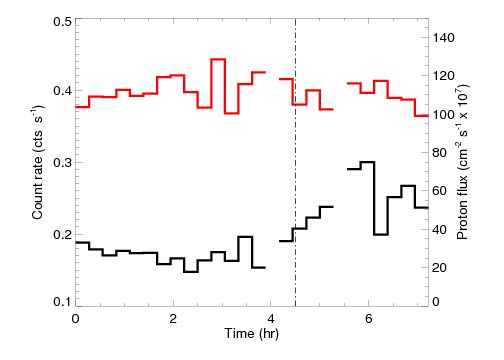

17 1199 0402250201 2006-06-27T12:36:14 S001 S002 6.8 9.5 lightcurve & spectrum

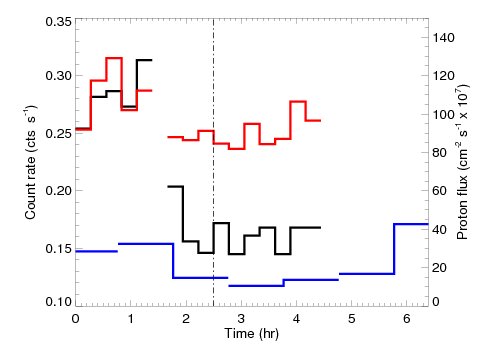

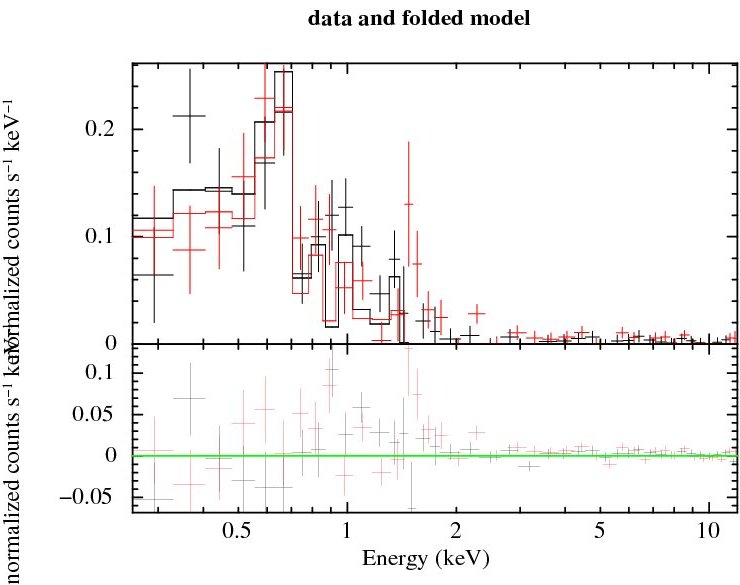

18 0676 0049540401 2003-08-19T11:09:03 S001 S002 6.5 8.9 lightcurve & spectrum

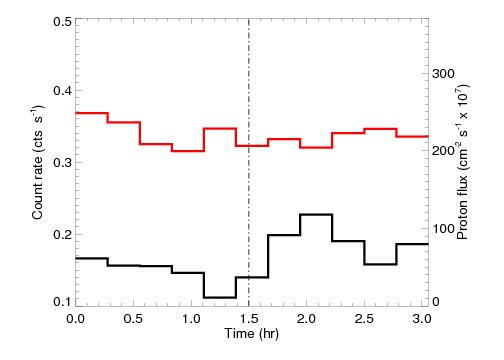

19 0982 0306700301 2005-04-19T14:06:31 S001 S002 6.2 9.9 lightcurve & spectrum
20 0645 0150320201 2003-06-17T15:07:05 S001 S002 5.8 4.2 lightcurve & spectrum

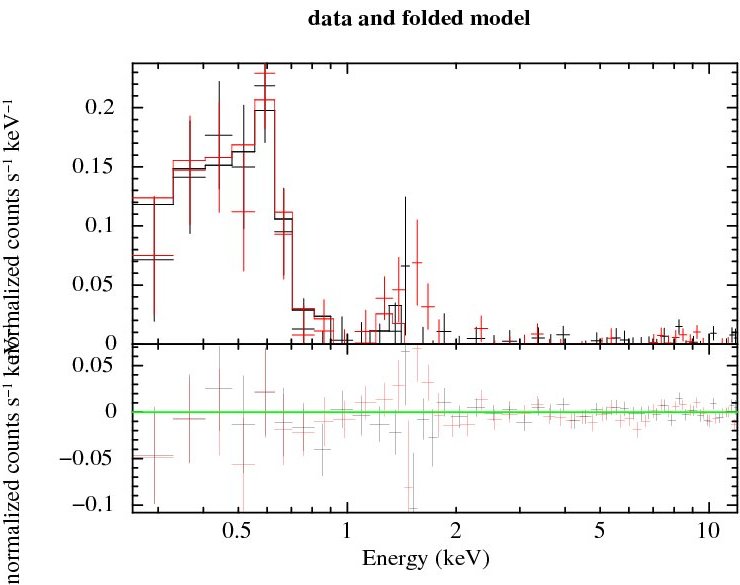

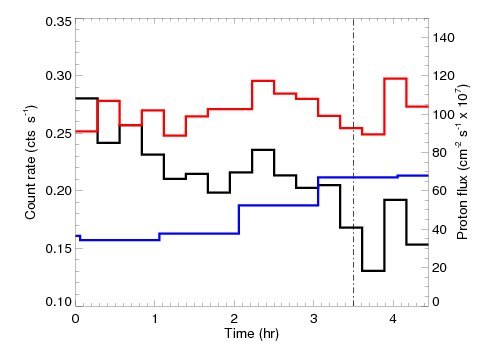

21 0630 0143150601 2003-05-18T12:57:01 U002 U002 5.7 8.0 lightcurve & spectrum

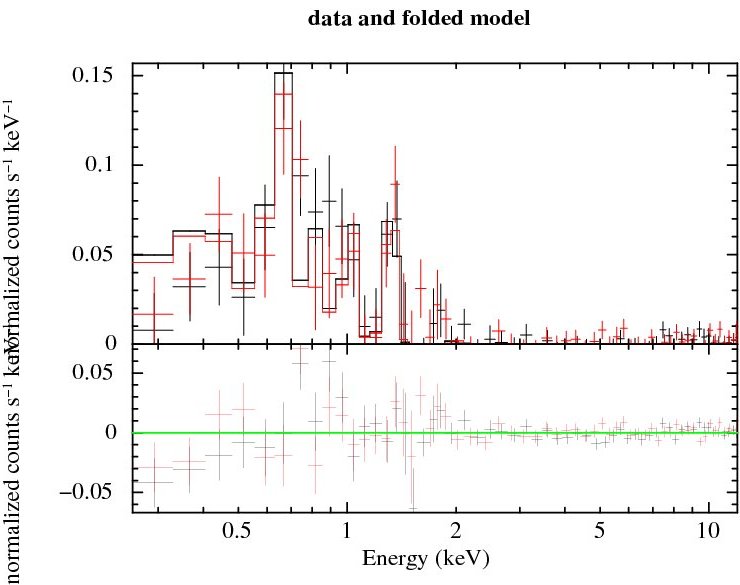

22 0494 0109120101 2002-08-21T03:37:55 S002 S003 5.4 7.8 lightcurve & spectrum

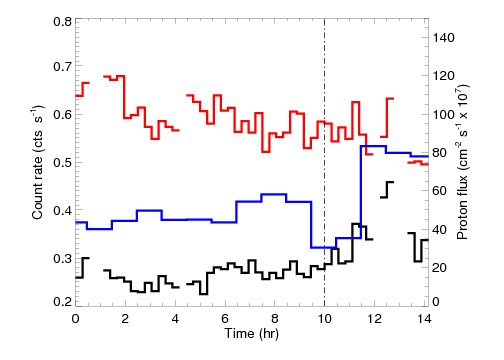

23 0178 0110980101 2000-11-27T18:15:14 S001 S002 5.2 1.9 lightcurve & spectrum
24 0114 0127921101 2000-07-23T16:57:27 S001 S002 4.9 3.8 lightcurve & spectrum

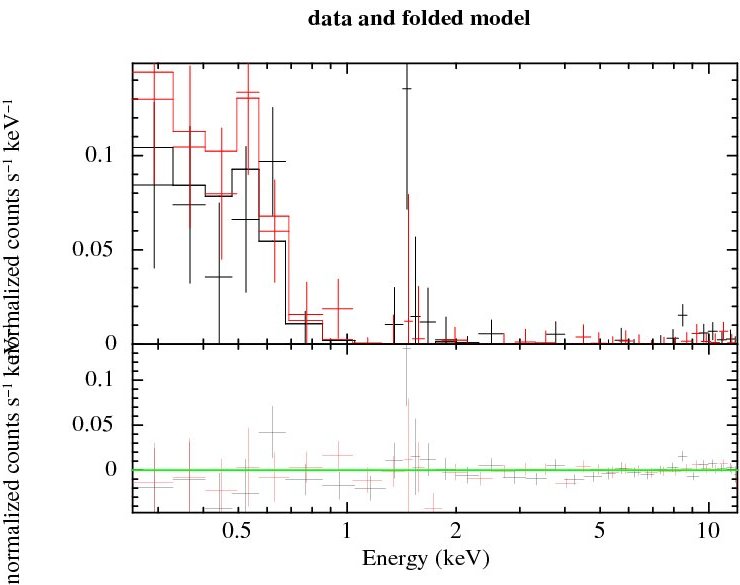

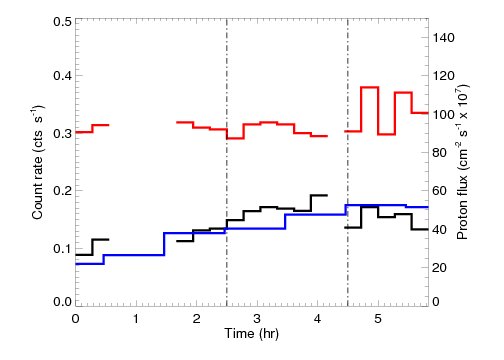

25 0811 0202100301 2004-05-14T14:44:32 S001 S002 4.5 3.9 lightcurve & spectrum
26 0997 0303260501 2005-05-20T06:06:48 S001 S002 4.1 2.3 lightcurve & spectrum
27 0163 0100640201 2000-10-29T14:23:57 S002 S003 3.7 3.7 lightcurve & spectrum

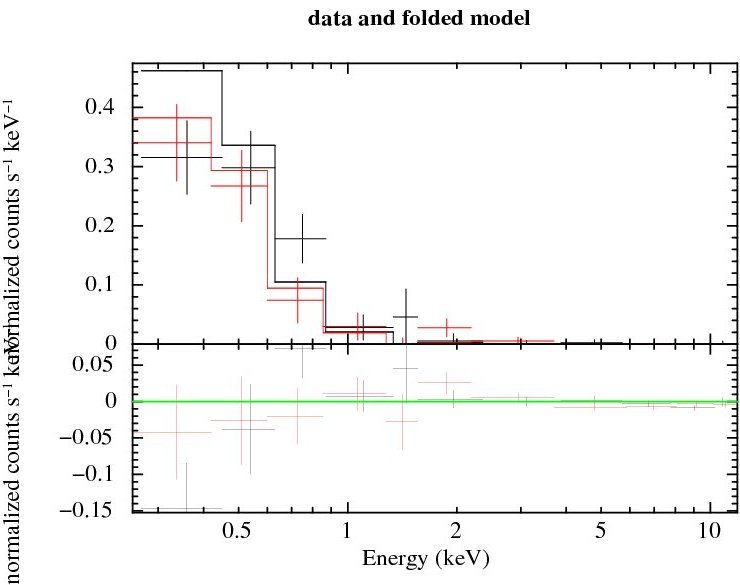

28 0431 0136000101 2002-04-17T06:19:03 S002 S003 3.6 2.2 lightcurve & spectrum

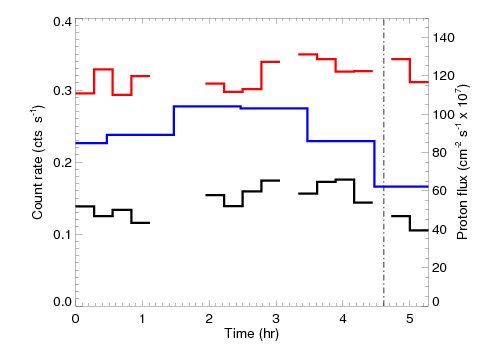

29 0605 0146390201 2003-03-29T19:12:51 S001 S003 3.5 4.8 lightcurve & spectrum

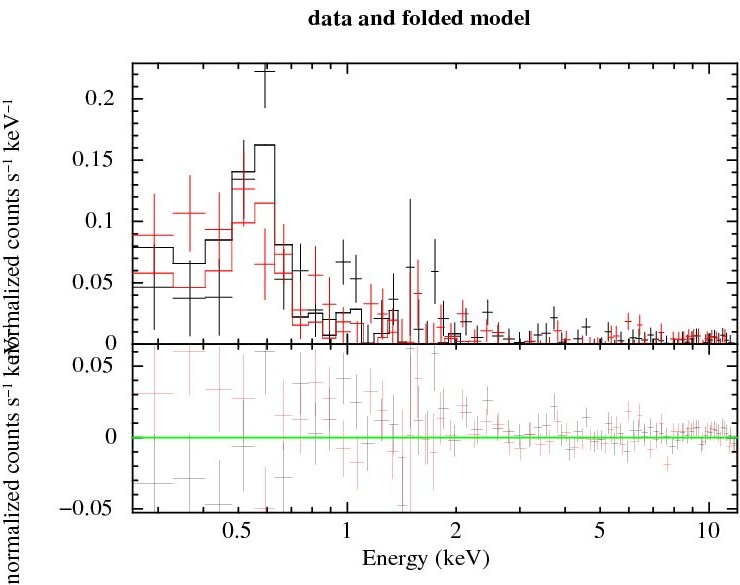

30 0906 0203361501 2004-11-19T15:33:15 S001 S002 3.4 2.7 lightcurve & spectrum
31 0113 0127921001 2000-07-21T21:20:48 S001 S002 3.4 2.0 lightcurve & spectrum

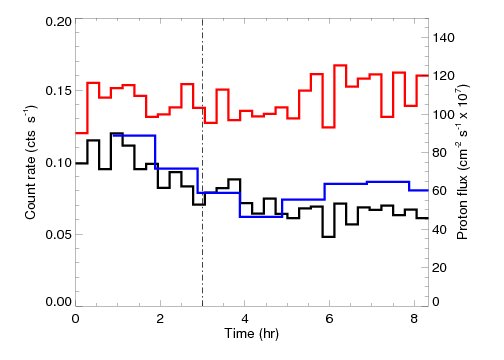

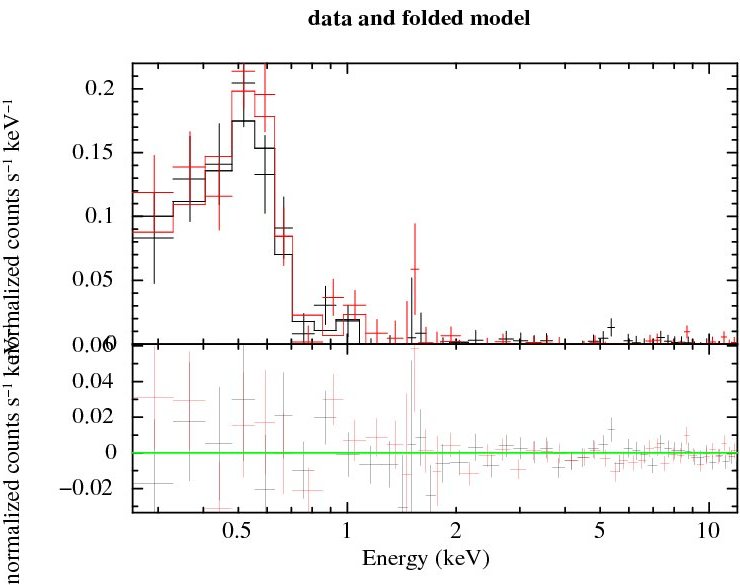

32 0834 0200000101 2004-06-28T16:03:16 S001 S002 3.3 3.4 lightcurve & spectrum
33 0846 0164560701 2004-07-23T08:51:47 S001 S002 3.3 1.8 lightcurve & spectrum

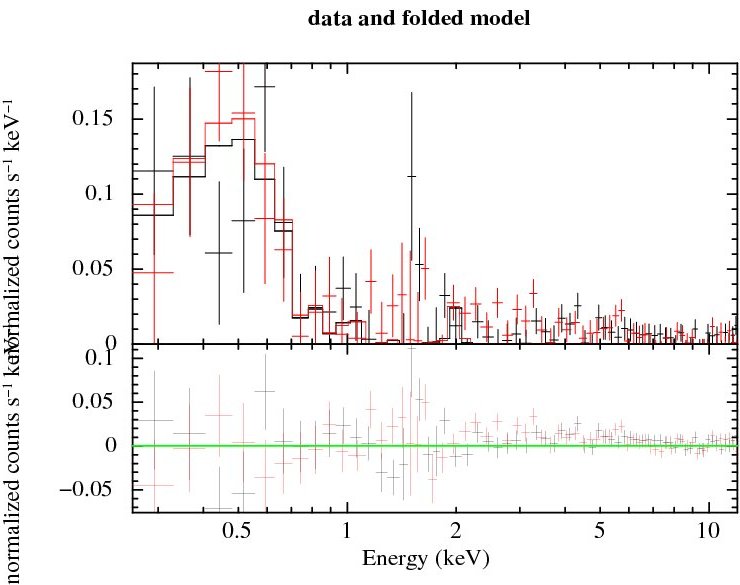

34 0387 0073140501 2002-01-19T22:22:03 S004 S005 3.2 1.3 lightcurve & spectrum
35 1600 0553650101 2008-09-03T21:27:44 S001 S002 3.1 2.3 lightcurve & spectrum

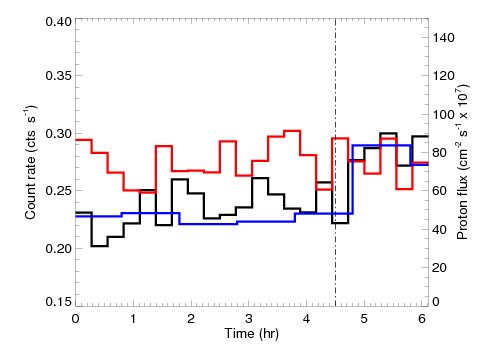

36 0555 0146510301 2002-12-20T23:02:11 S001 S002 3.0 3.5 lightcurve & spectrum

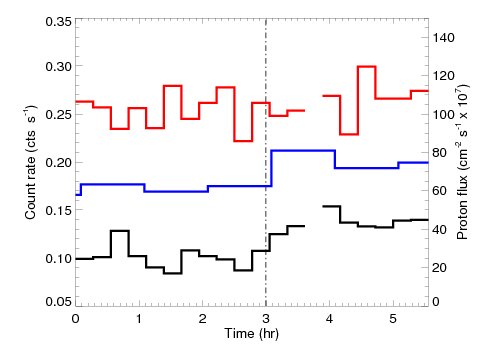

37 0515 0089370501 2002-10-01T10:53:18 S001 S002 2.9 2.3 lightcurve & spectrum

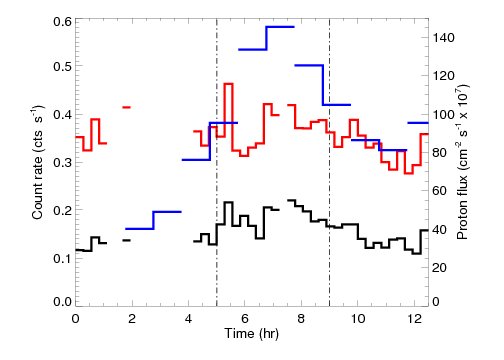

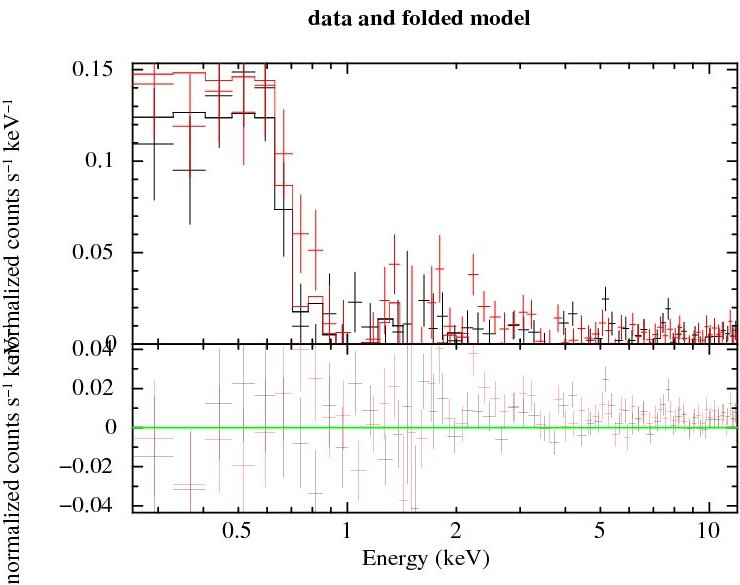

38 1049 0300800101 2005-08-31T06:13:42 S002 S003 2.9 1.4 lightcurve & spectrum

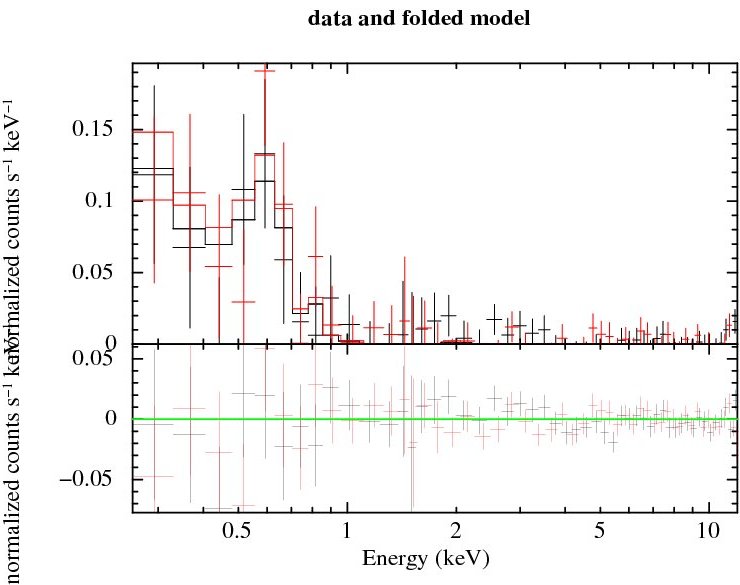

39 0376 0001930301 2001-12-28T14:50:59 S001 S002 2.9 1.6 lightcurve & spectrum

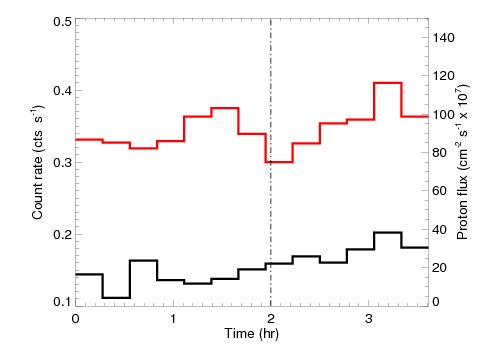

40 1206 0404965401 2006-07-11T14:37:50 S003 S004 2.9 1.6 lightcurve & spectrum
41 0574 0110910201 2003-01-27T10:55:46 S002 S003 2.9 1.3 lightcurve & spectrum
42 0136 0101440101 2000-09-05T18:48:36 S001 S002 2.9 1.7 lightcurve & spectrum

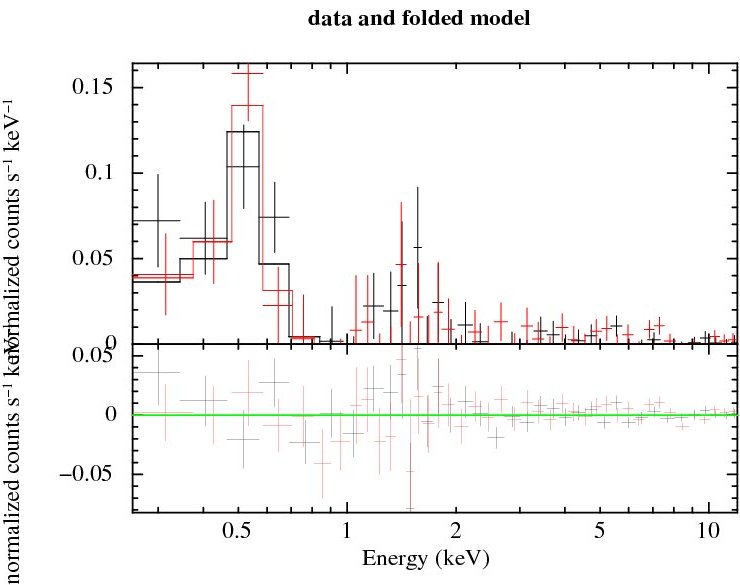

43 1075 0305560101 2005-10-21T23:58:09 S001 S002 2.8 2.7 lightcurve & spectrum

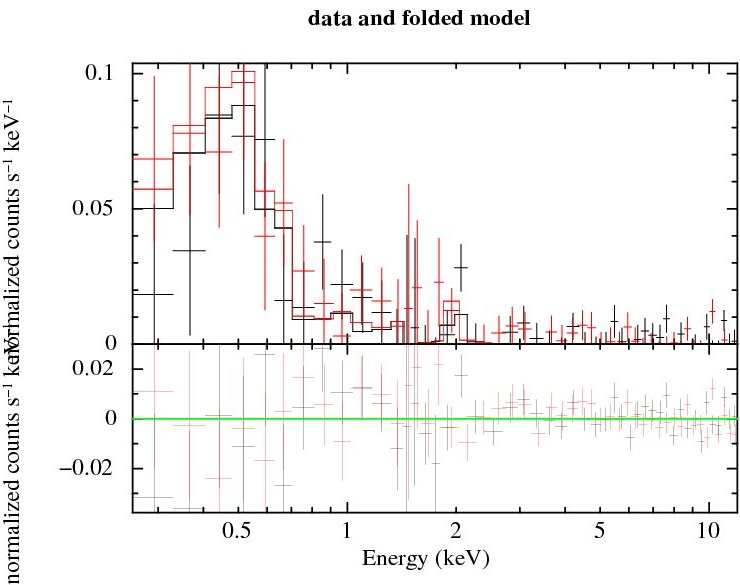

44 0643 0141150101 2003-06-14T10:28:53 S001 S002 2.7 2.4 lightcurve & spectrum

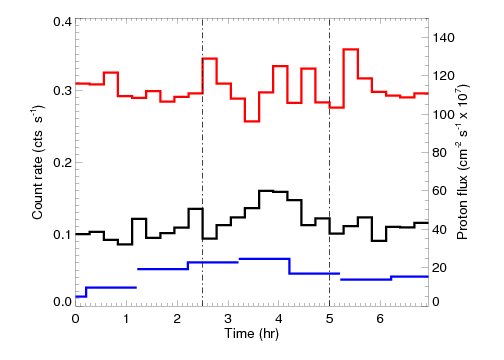

45 0918 0206430101 2004-12-13T06:50:20 S001 S002 2.7 2.2 lightcurve & spectrum

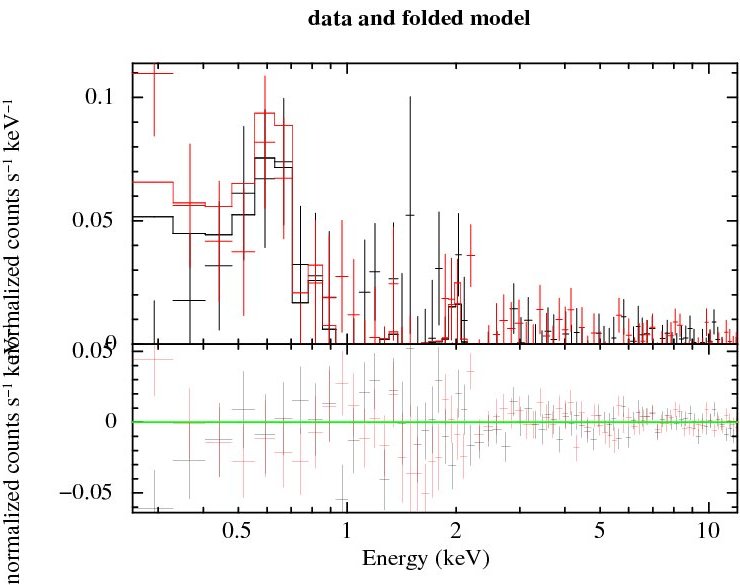

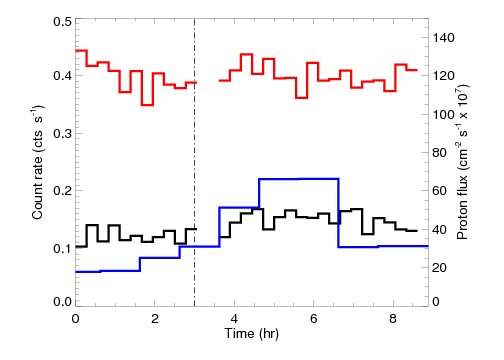

46 0313 0092140101 2001-08-25T05:32:36 S001 S002 2.7 2.6 lightcurve & spectrum
47 0391 0085280301 2002-01-28T01:59:04 S001 S002 2.7 1.8 lightcurve & spectrum
48 0173 0106660201 2000-11-18T13:04:36 S001 S002 2.7 1.2 lightcurve & spectrum
49 0982 0303720301 2005-04-19T19:27:49 S001 S002 2.6 2.8 lightcurve & spectrum

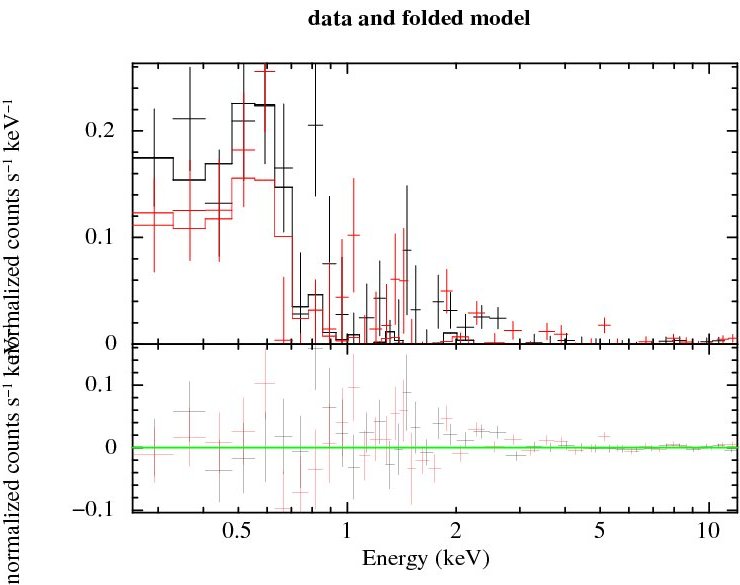

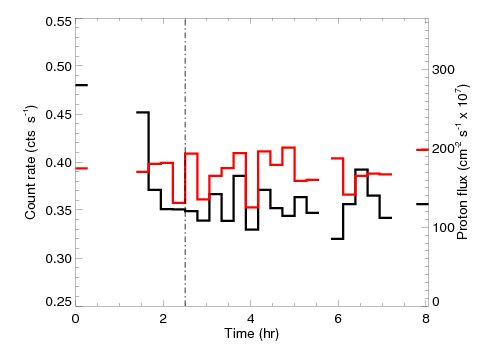

50 0258 0112290201 2001-05-06T09:19:40 S001 S002 2.6 3.4 lightcurve & spectrum

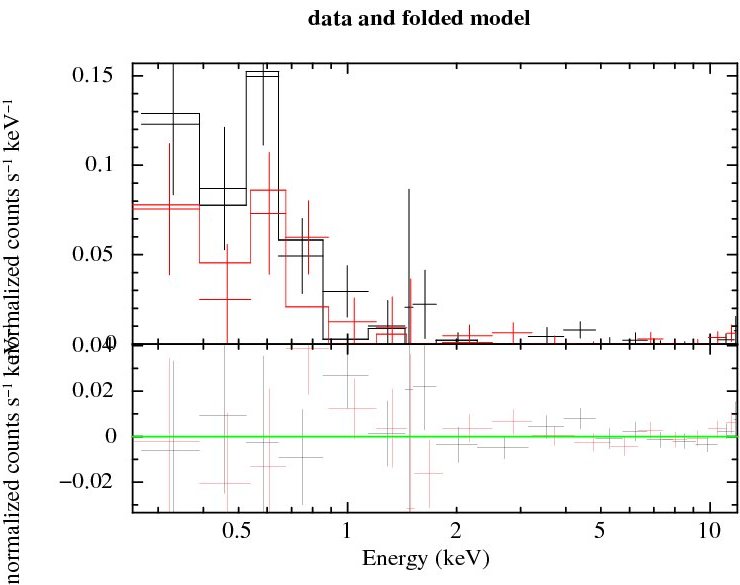

51 0260 0070340201 2001-05-10T10:07:43 U002 U002 2.6 3.3 lightcurve & spectrum

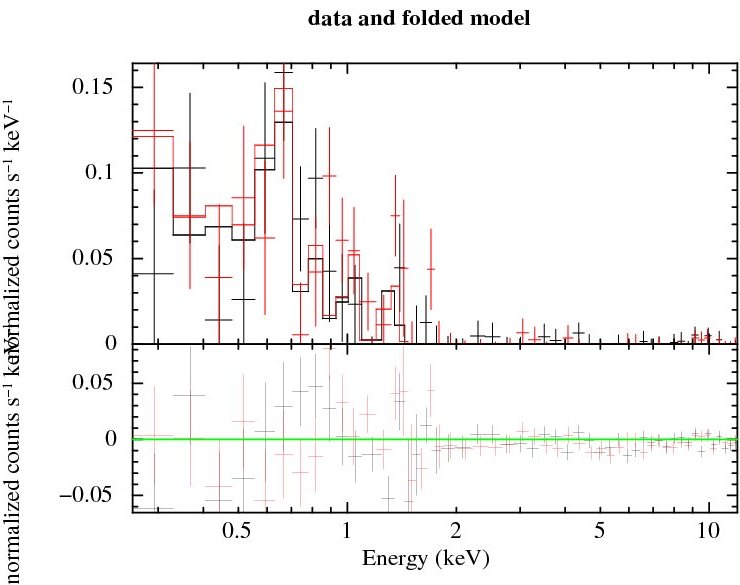

52 0484 0103060201 2002-08-01T08:34:24 S002 S003 2.5 1.7 lightcurve & spectrum
53 0997 0206090201 2005-05-20T15:50:15 S001 S002 2.5 2.6 lightcurve & spectrum

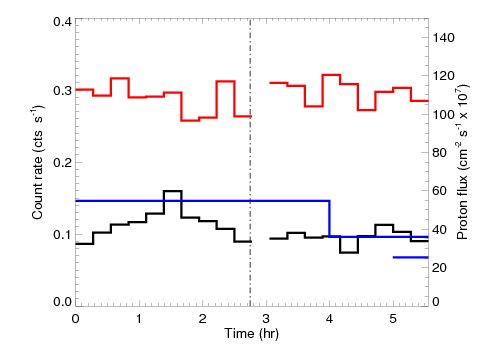

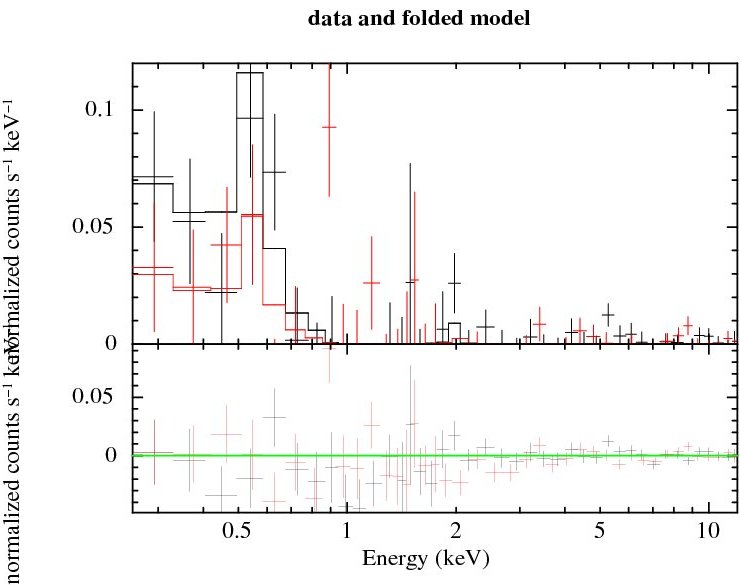

54 0690 0134531701 2003-09-15T22:01:05 S002 S003 2.4 2.4 lightcurve & spectrum
55 1023 0304531801 2005-07-11T02:00:45 S001 S002 2.4 2.2 lightcurve & spectrum
56 0476 0109661201 2002-07-16T02:28:42 S001 S002 2.4 2.6 lightcurve & spectrum
57 1018 0212480801 2005-07-01T06:38:44 S001 S002 2.4 8.8 lightcurve & spectrum
58 0871 0206360101 2004-09-10T02:32:10 S001 S002 2.4 1.3 lightcurve & spectrum

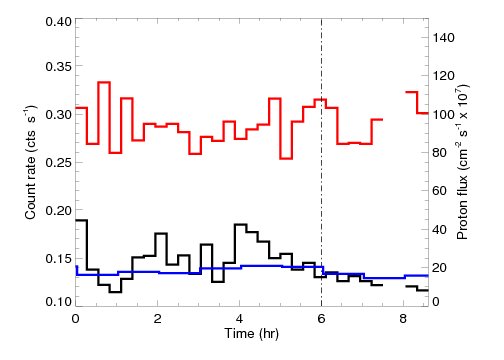

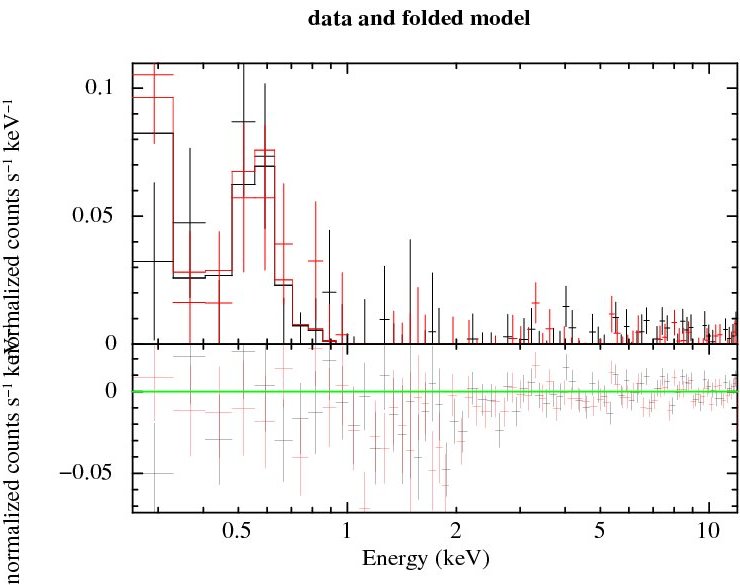

59 0689 0149610401 2003-09-14T03:52:38 S001 S006 2.4 1.9 lightcurve & spectrum

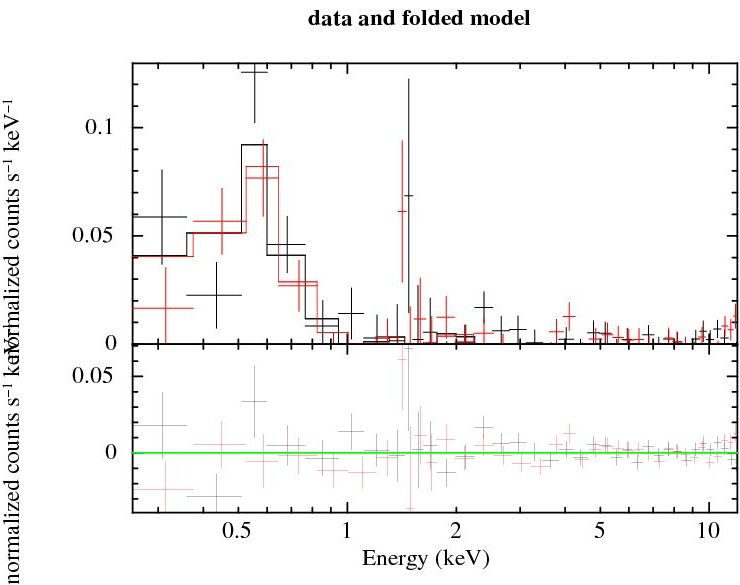

60 0859 0203541101 2004-08-18T06:44:16 S001 S002 2.3 2.0 lightcurve & spectrum

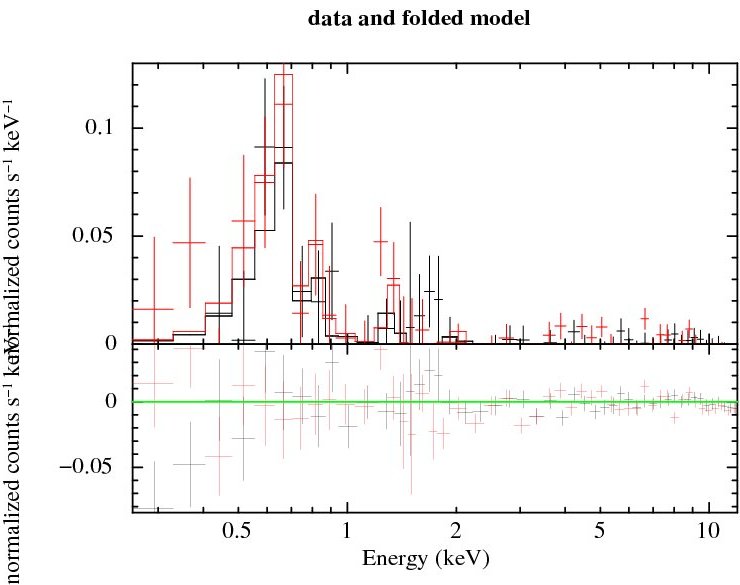

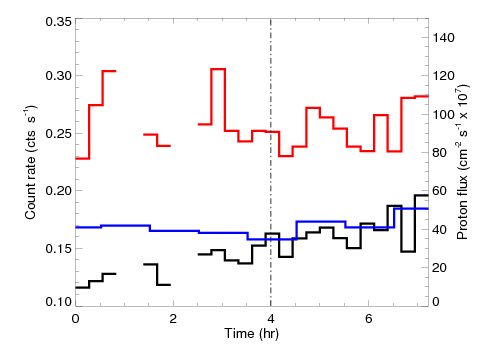

61 0354 0049340201 2001-11-13T22:38:41 S001 S002 2.3 1.8 lightcurve & spectrum

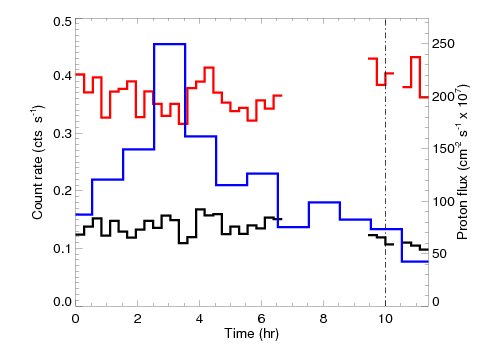

62 0052 0099760201 2000-03-22T08:20:43 S001 S002 2.2 1.0 lightcurve & spectrum
63 0322 0094400101 2001-09-11T14:37:36 S001 S002 2.2 2.3 lightcurve & spectrum

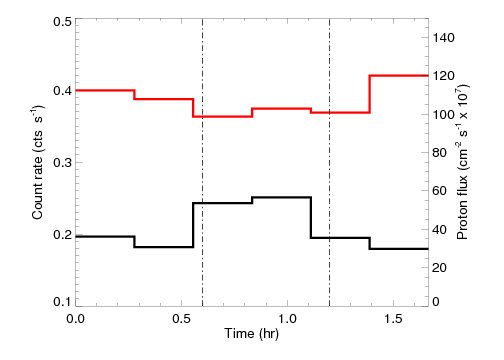

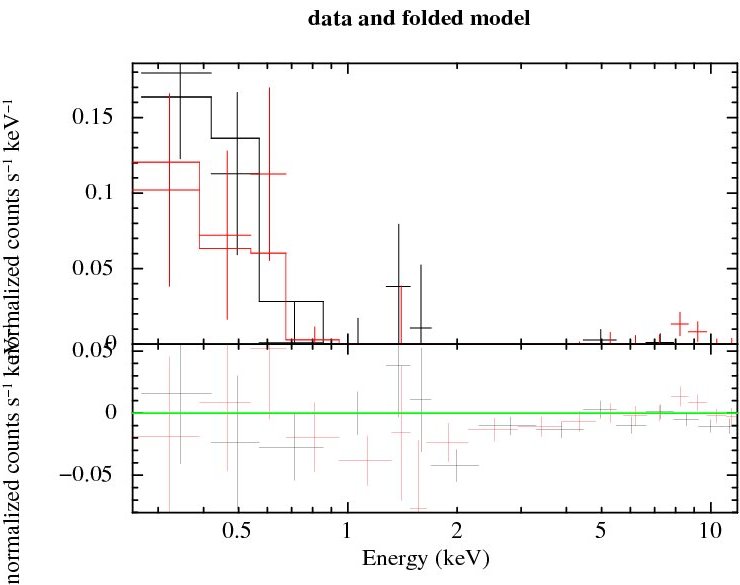

64 1232 0406420401 2006-09-01T10:44:03 S001 S002 2.1 2.3 lightcurve & spectrum

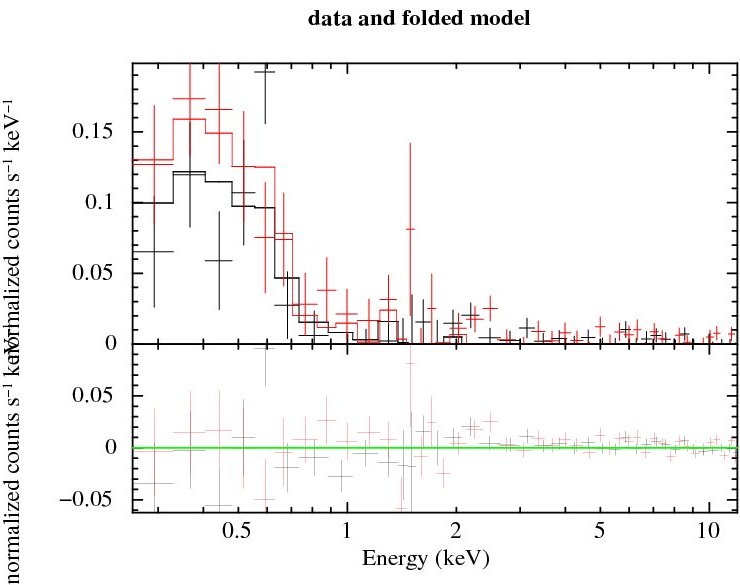

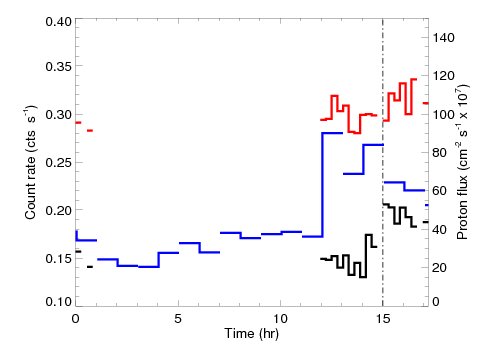

65 0990 0203450201 2005-05-06T00:57:03 S001 S002 2.1 4.7 lightcurve & spectrum

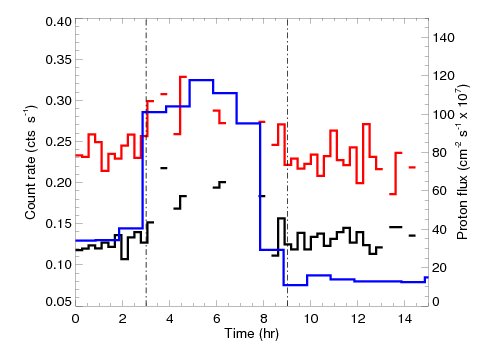

66 0167 0106460101 2000-11-06T14:49:05 S001 S002 2.1 1.1 lightcurve & spectrum
67 0395 0084140501 2002-02-04T19:47:29 S002 S003 2.1 5.8 lightcurve & spectrum
68 0234 0069750101 2001-03-19T12:13:35 S001 S002 2.1 1.7 lightcurve & spectrum

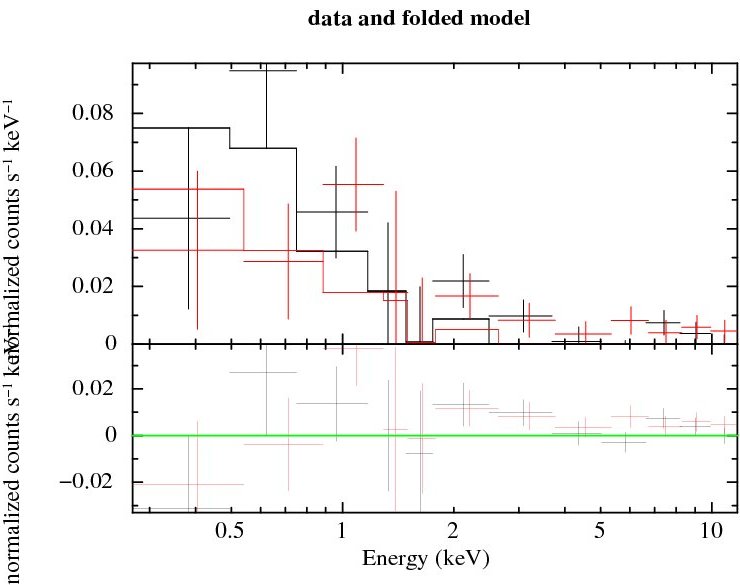

69 0175 0110660401 2000-11-23T01:27:44 S002 S003 2.1 2.0 lightcurve & spectrum
70 0554 0056021001 2002-12-18T06:47:41 S001 S002 2.0 3.5 lightcurve & spectrum

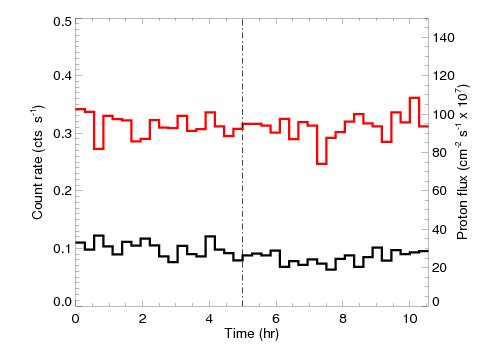

71 1232 0405210601 2006-08-31T02:24:21 S001 S002 2.0 1.5 lightcurve & spectrum

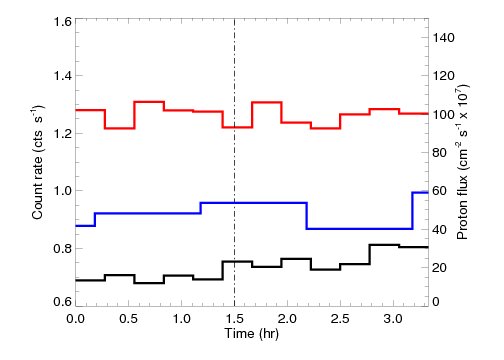

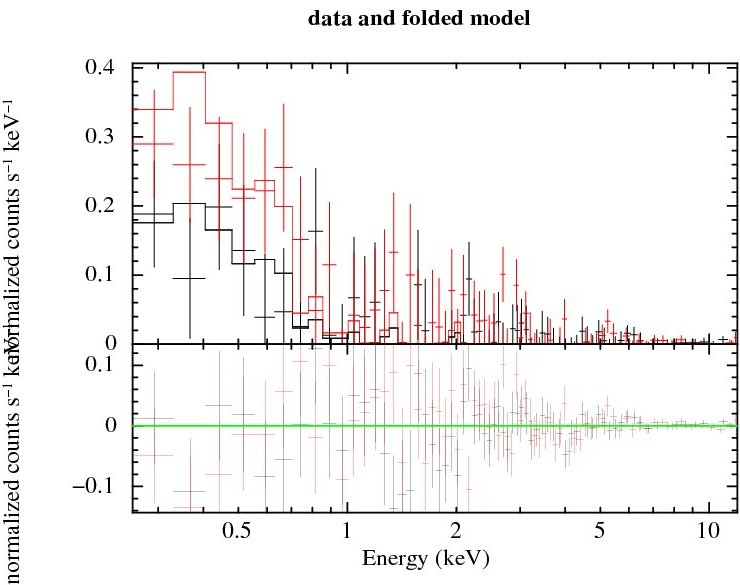

72 0150 0105260501 2000-10-04T03:47:46 S001 S002 2.0 3.0 lightcurve & spectrum

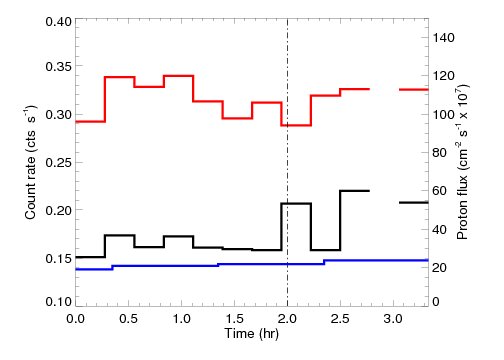

73 0634 0151400201 2003-05-26T15:34:39 S001 S002 2.0 3.4 lightcurve & spectrum

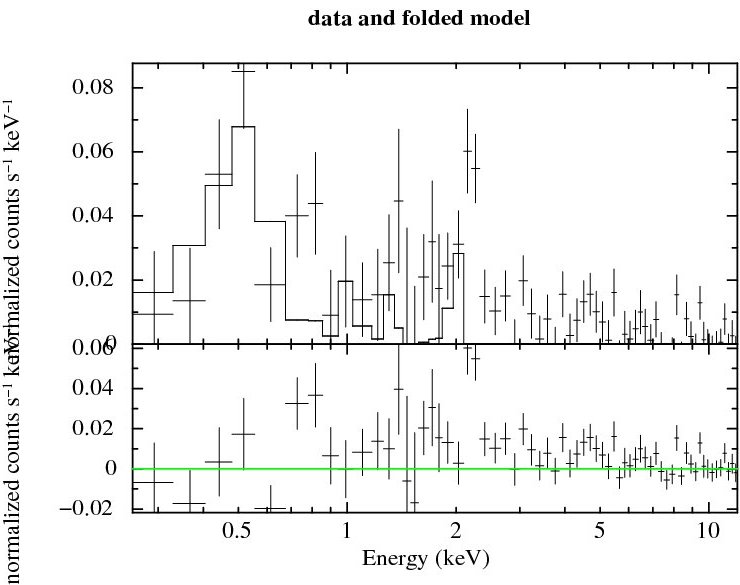

74 1594 0560191501 2008-08-23T01:04:45 S001 S003 2.0 1.9 lightcurve & spectrum
75 0747 0200730401 2004-01-07T13:39:44 S001 S002 1.9 1.1 lightcurve & spectrum

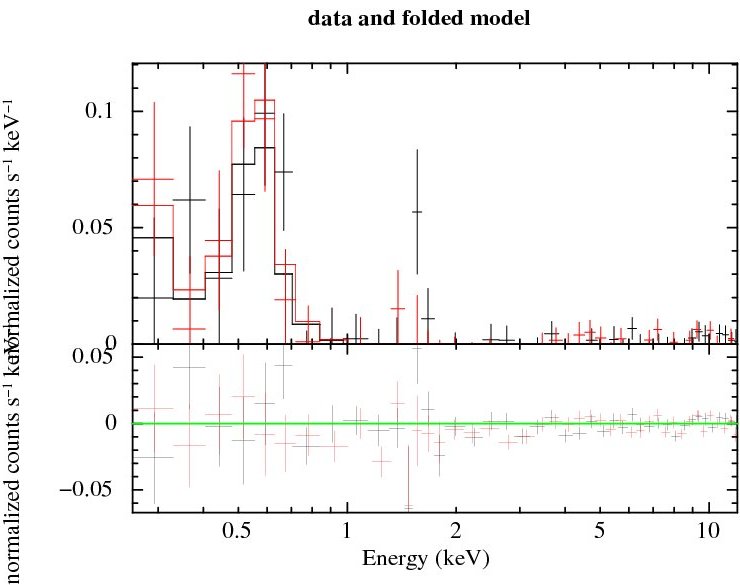

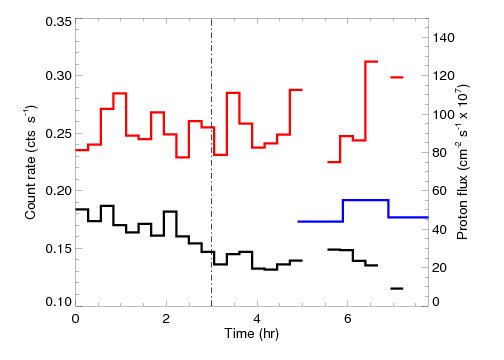

76 0428 0112520101 2002-04-10T21:01:20 S001 S002 1.9 1.2 lightcurve & spectrum

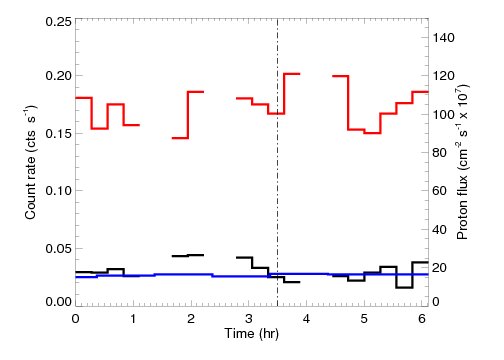

77 0692 0112490301 2003-09-19T03:09:43 S011 S012 1.8 1.5 lightcurve & spectrum

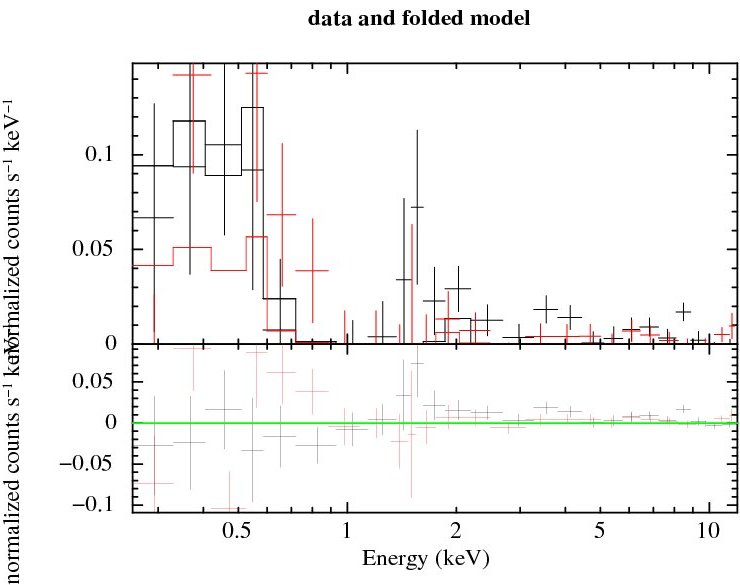

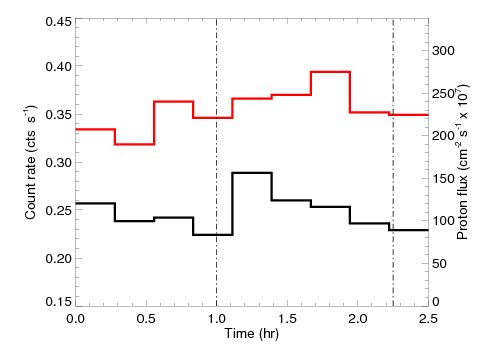

78 0428 0112521001 2002-04-10T17:04:36 S001 S002 1.8 1.5 lightcurve & spectrum

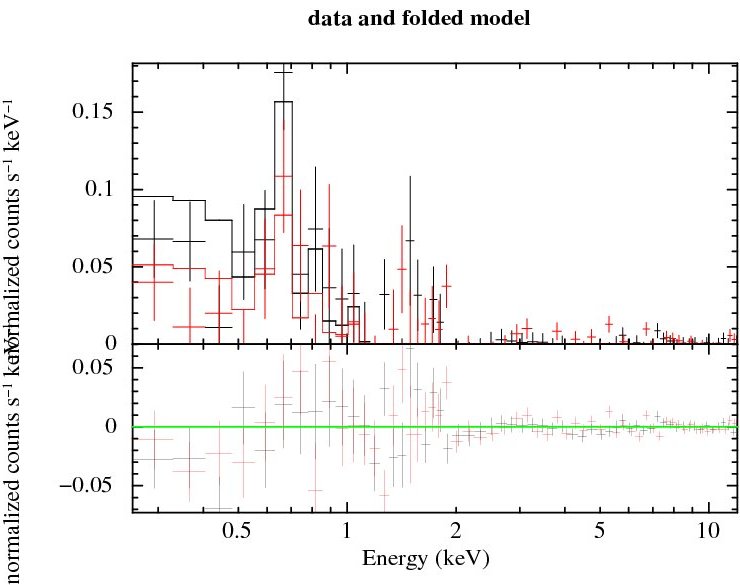

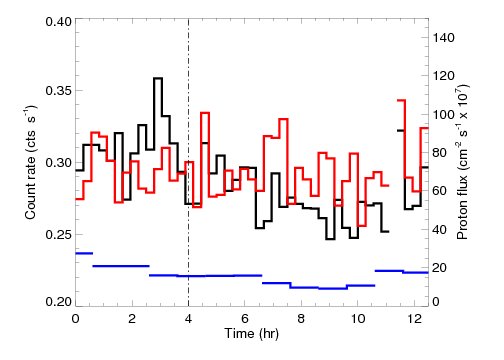

79 0875 0203750101 2004-09-18T20:23:22 S001 S002 1.8 1.9 lightcurve & spectrum

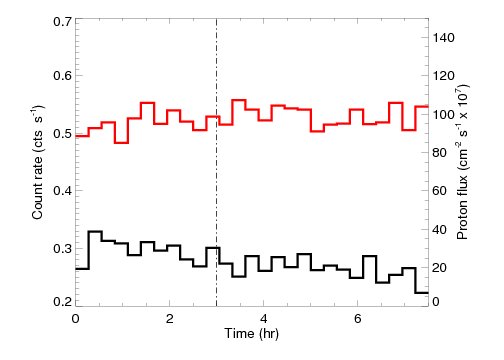

80 0457 0124712501 2002-06-07T17:55:22 S002 S003 1.8 2.9 lightcurve & spectrum

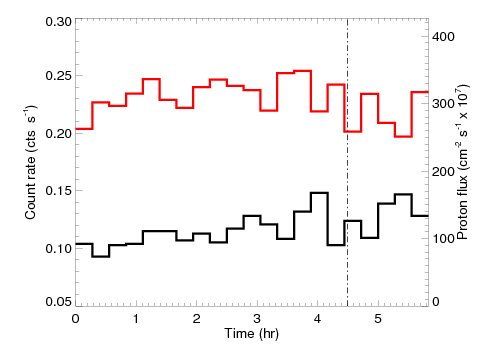

81 0191 0093550401 2000-12-23T16:43:15 S001 S002 1.8 1.8 lightcurve & spectrum
82 0882 0203610401 2004-10-03T05:40:41 S001 S003 1.8 2.2 lightcurve & spectrum
83 0865 0206610201 2004-08-29T05:18:21 S001 S002 1.7 1.2 lightcurve & spectrum

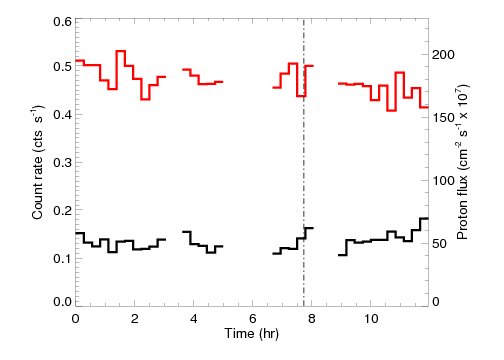

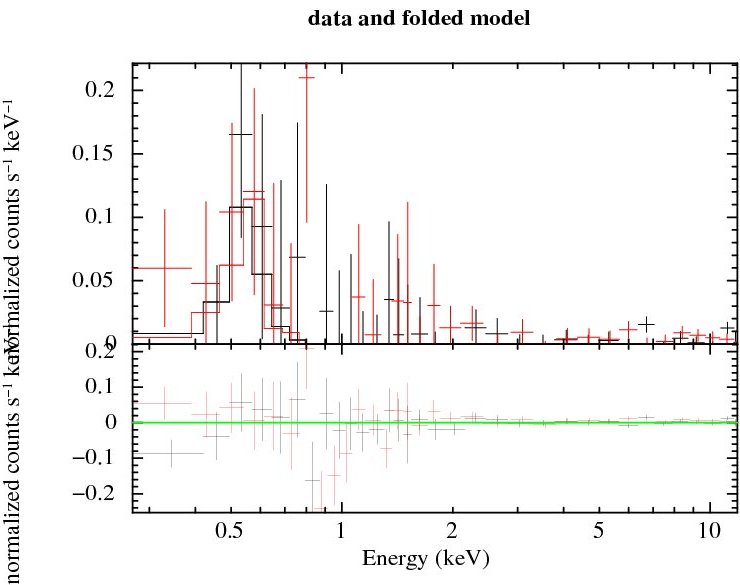

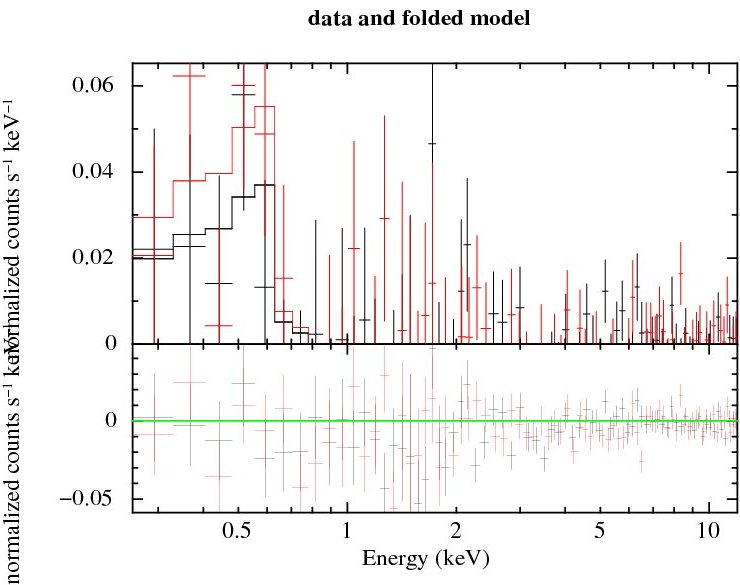

84 1349 0406960101 2007-04-21T12:56:25 S001 S002 1.7 1.1 lightcurve & spectrum

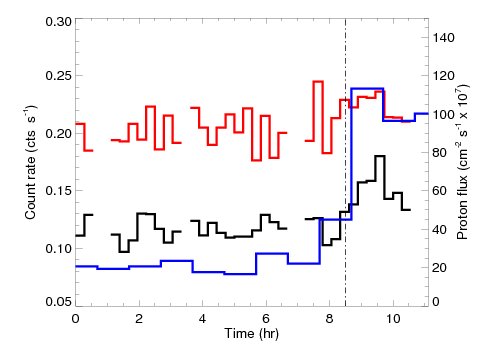

85 0750 0201160401 2004-01-13T04:04:06 S001 S002 1.6 1.8 lightcurve & spectrum

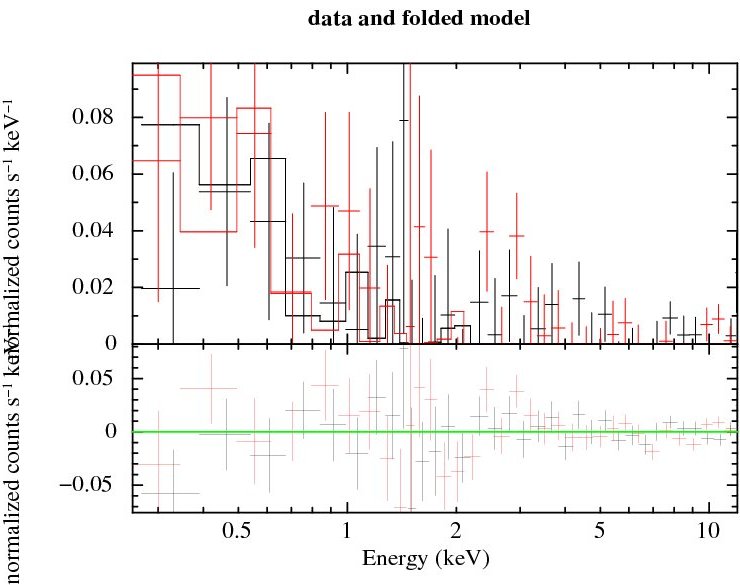

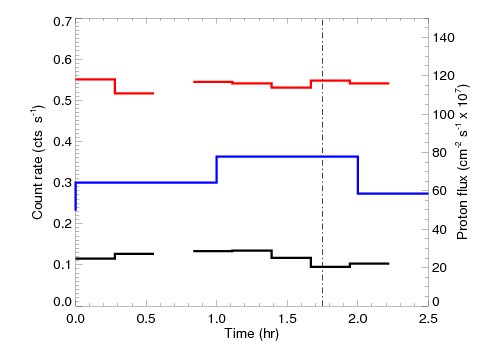

86 0235 0051940501 2001-03-22T17:03:39 S001 S002 1.6 2.6 lightcurve & spectrum

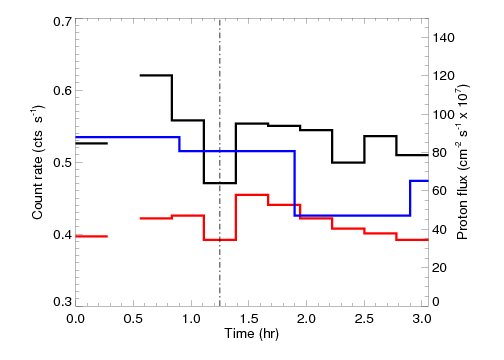

87 0750 0201030301 2004-01-13T16:48:19 S001 S002 1.6 3.4 lightcurve & spectrum
88 0420 0093190501 2002-03-25T20:42:08 S001 S002 1.5 1.0 lightcurve & spectrum
89 0457 0112521301 2002-06-07T10:03:23 S001 S002 1.5 2.5 lightcurve & spectrum

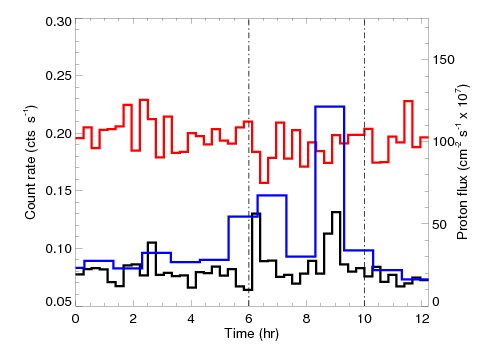

90 0168 0101440401 2000-11-07T21:33:15 S001 S002 1.5 1.6 lightcurve & spectrum

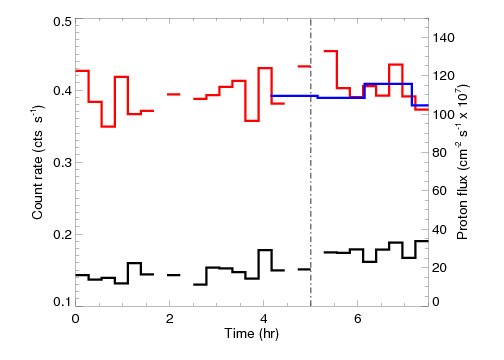

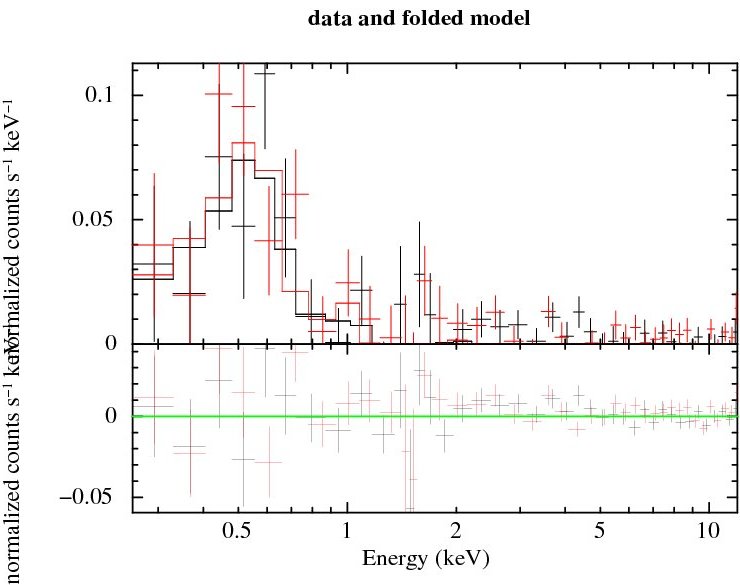

91 0369 0084230201 2001-12-14T18:06:19 S001 S002 1.5 1.3 lightcurve & spectrum

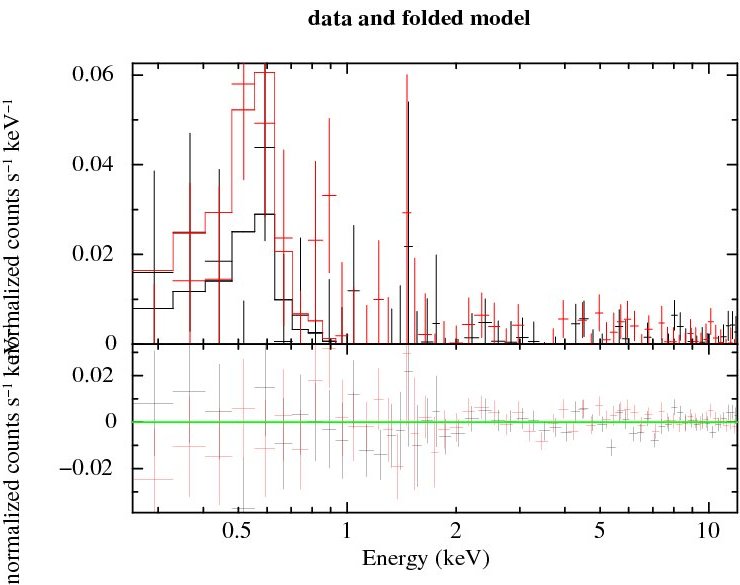

92 0461 0041750101 2002-06-15T19:44:59 S001 S003 1.5 1.7 lightcurve & spectrum
93 0997 0201330101 2005-05-19T19:11:56 S001 S002 1.5 1.2 lightcurve & spectrum

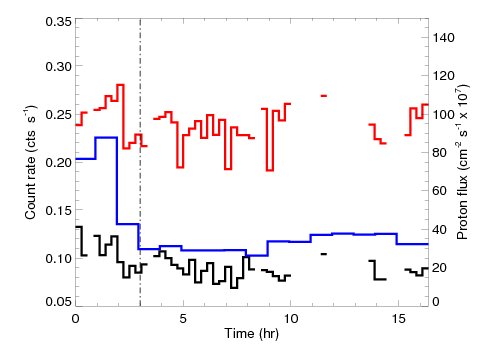

94 0630 0151390101 2003-05-18T19:04:38 S007 S008 1.5 1.2 lightcurve & spectrum
95 0449 0082140301 2002-05-22T11:03:24 S001 S002 1.5 1.8 lightcurve & spectrum

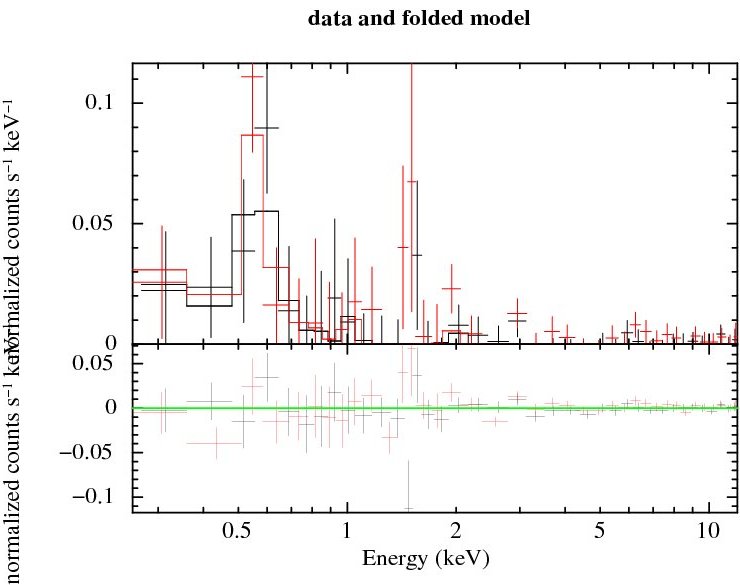

96 0325 0085280501 2001-09-18T03:28:54 S001 S002 1.4 1.5 lightcurve & spectrum

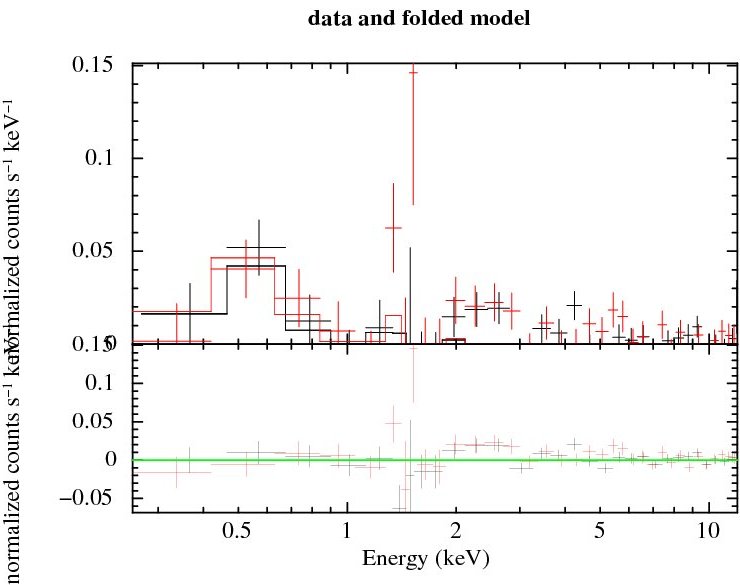

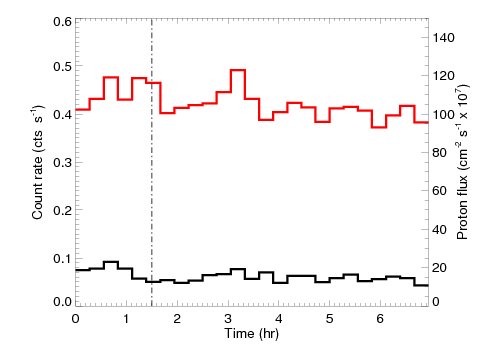

97 1555 0552410401 2008-06-05T14:26:45 S001 S002 1.4 1.0 lightcurve & spectrum

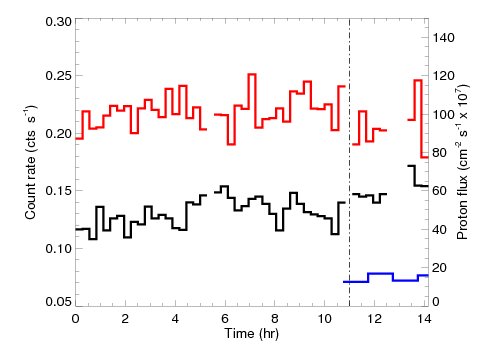

98 0148 0112880801 2000-09-29T18:15:46 S001 S002 1.4 1.4 lightcurve & spectrum

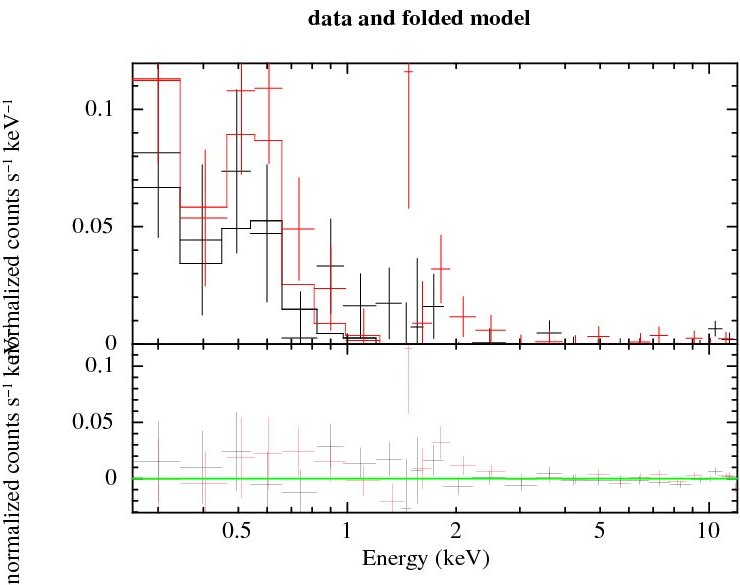

99 0159 0112980201 2000-10-21T18:53:27 S001 S002 1.4 1.3 lightcurve & spectrum
100 0676 0152460301 2003-08-18T05:53:08 S001 S002 1.3 2.8 lightcurve & spectrum

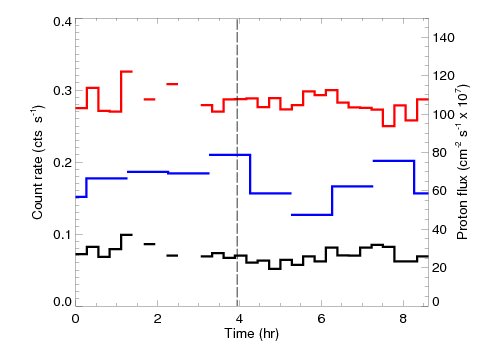

101 0974 0302640101 2005-04-03T15:14:15 S002 S003 1.3 1.8 lightcurve & spectrum

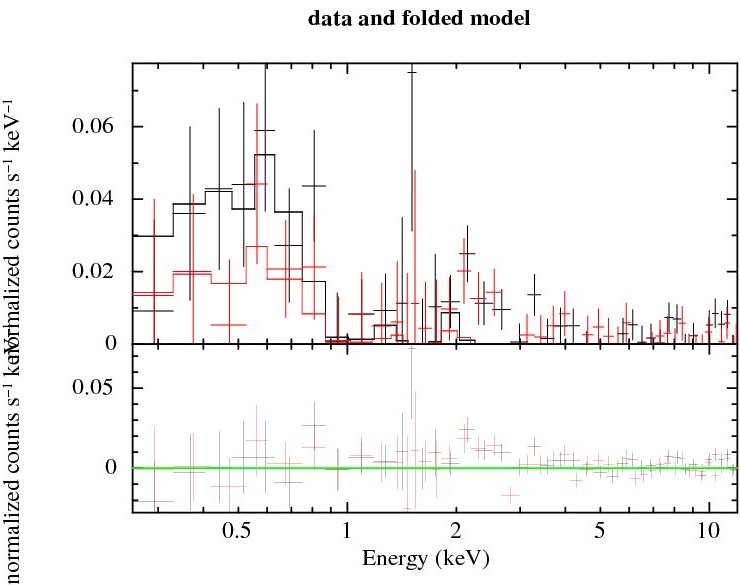

102 1094 0306680201 2005-11-29T15:11:07 S001 S002 1.3 1.1 lightcurve & spectrum

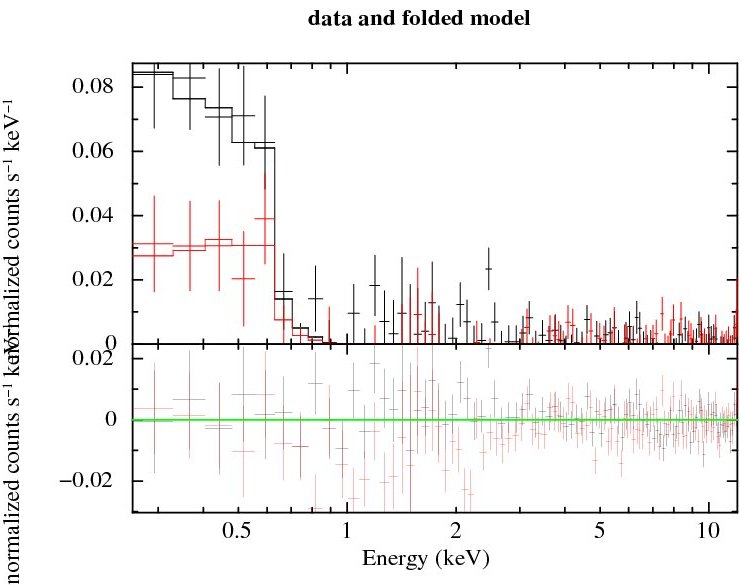

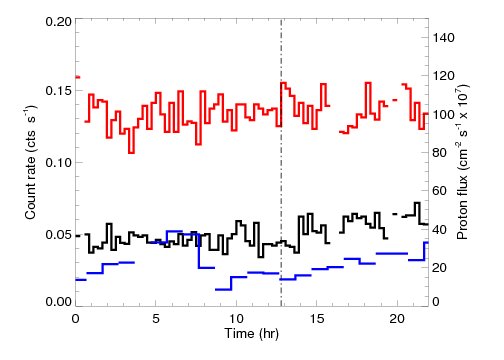

103 1364 0500500801 2007-05-21T11:19:23 U002 U002 1.3 1.7 lightcurve & spectrum
This page was created by Jenny Carter (Leicester University), and is maintained by the XMM-Newton SOC. The last update is from 28-Jun-2016.
