The European Photon Imaging Camera (EPIC) onboard XMM-Newton

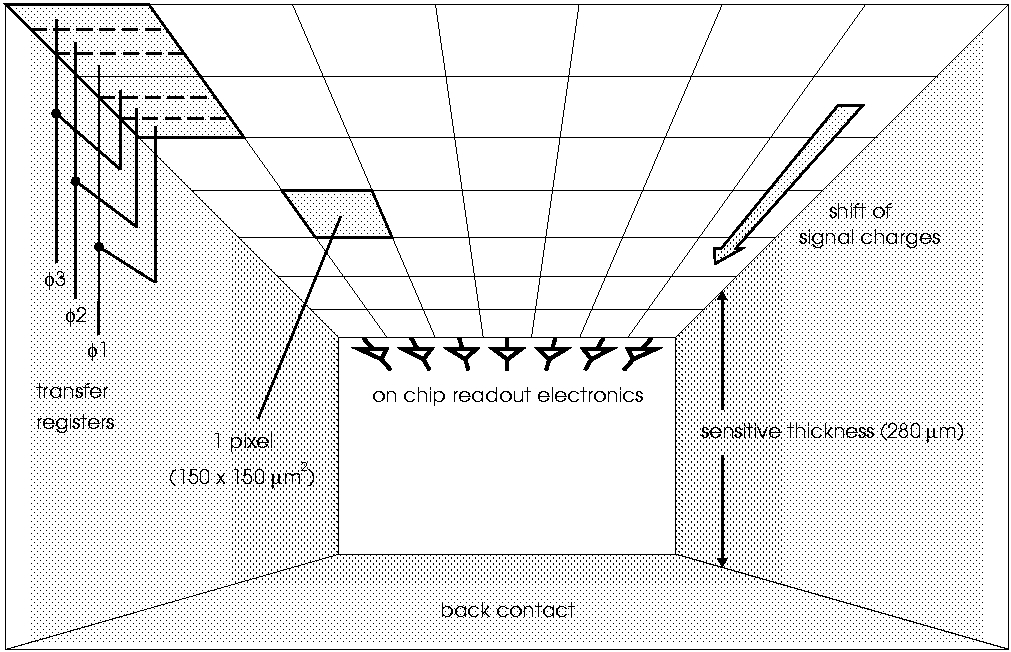

Looking inside the pn-CCD: The X-rays hit the device from the backside (bottom). The charges are collected in the electron potential minimum 10 microns from the surface having the pixel structure. After integration, they are transferred to the on-chip amplifier. Each CCD column is terminated by an on-chip JFET amplifier
