Single-object visualisation tool for Gaia

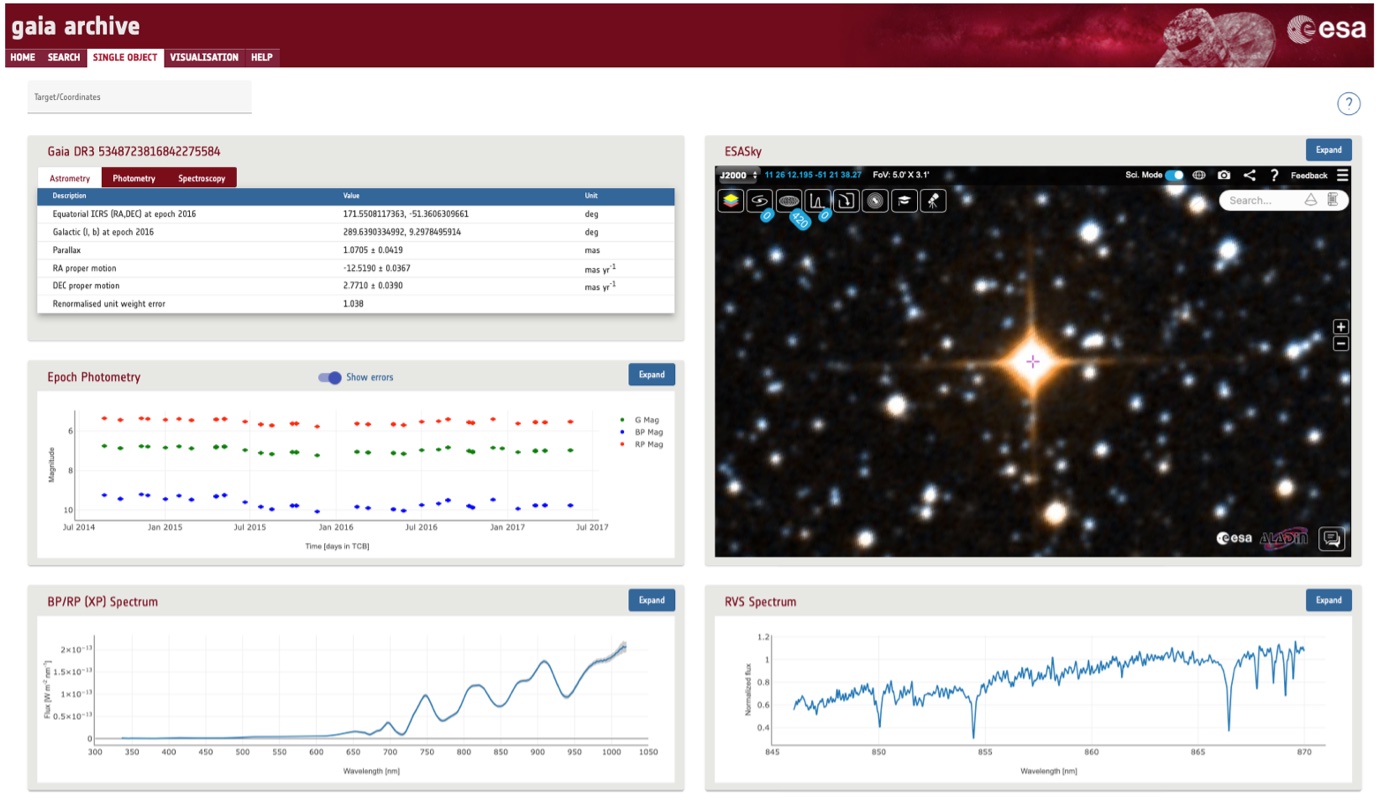

Figure 1. Screenshot of the tool, accessible from the Gaia ESA Archive at https://gea.esac.esa.int/archive/ under the tab “SINGLE OBJECT”. The powerful bulk-data visualisation tool can be found under the adjacent tab “VISUALISATION”. Image: ESA/ESDC
As part of Gaia’s third data release (Gaia DR3), millions of stars now have their spectra and/or light curves revealed by Gaia. Whereas the Gaia ESA Archive already offers an interactive visualisation service that is meant to explore the data in bulk, the Archive now also offers a single-object visualisation tool to explore the new data.
The tool offers a name resolver to find the object of interest, a data table listing selected fundamental measured and inferred quantities, and four interactive panels with graphical information:
- Name resolver: the name resolver works using Gaia DR3 designations and it also accepts other object names and coordinates as resolved by SIMBAD/Sesame. A showcase object is pre-loaded when opening the tool, namely the bright classical Cepheid “V* BF Oph” (Gaia DR3 4111834567779557376). Another interesting source worth trying is the RR Lyrae variable “V* RR Cet” (Gaia DR3 2558296724402139392).
- Basic data: this box shows, in up to four tabs, selected basic data of the source extracted from the gaiadr3.gaia_source table.
- ESASky: this widget shows a zoomed region of the sky centred on the object. All functionality of ESASky is available inside the widget using the customary controls.
- Epoch Photometry: this panel displays the time-resolved, integrated photometry in the G, GBP, and GRP bands. The individual bands can be toggled on and off in the legend; the display of (proxies for) magnitude errors can also be toggled. This data is available for more than 11 million sources (those with gaiadr3.gaia_source.has_epoch_photometry = ‘TRUE’).
- BP/RP (XP) Spectrum: this panel displays the externally calibrated sampled mean spectrum. This data is available for more than 34 million sources (those with gaiadr3.gaia_source.has_xp_sampled = ‘TRUE’).
- RVS Spectrum: this panel displays the normalised RVS mean spectrum. This data is available for nearly 1 million sources (those with gaiadr3.gaia_source.has_rvs = ‘TRUE’).
Any of the interactive boxes/panels can be expanded by clicking the “Expand”/”Collapse” button in the top-right corner. Inside the plotting panels, which use the plotly framework, various icons allow the user to zoom, re-scale, output .png files, etc. Help information for this tool has been published on a dedicated Gaia help page.
Any feedback on the page is more than welcome through the Gaia helpdesk.
